The 2.5" pop up monitor
is perfect for leaving on the dash. Simply pop it
up as needed.
For a complete system simply select the camera you would
like below
This unit is in black!!!
1) Screen size: 2.5 " Color TFT LCD with brand new panel
2) 2 video input for rearview camera with 2nd camera option for caravan
3) Blue screen function when no signal
4) 12V supply
5) Normal /mirror image adjustable
6) This monitor can be left on whilst driving for extended periods of time
7) Size 90mm x 90mm

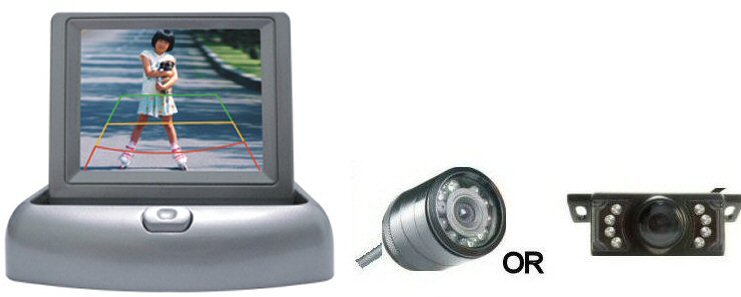

Simply choose if you would prefer the bullet / number plate camera. The type of camera will depend on your personal taste and vehicle type.

Bullet Number Plate
These cameras are supplied with 7.5M of RCA cabling.
|
Camera Options
|
CMOS
|
|
Bullet
|
|
|
Number Plate
|
|
Second Camera – These cameras are supplied with both 7.5M and 15M RCA cabling
GENERAL CONNECTIONS FOR ALL RCA MONITORS:
Both Camera and monitor need to be powered by connecting
Red - Positive
Black - Negative
If the power cable does not have Red/Black wires then
you will need to test using a multi meter. The inside
of the plug is positive, the outside negative
Some monitors may also have a green wire which, when
connected to the positive side of the reversing light
will make the camera display on input no 2. If
connecting a second camera then this wire should not be
connected (or a simple switch put in to disable it when
the second camera is connected). The monitor can be
manually turned on to display the camera at any time and
can be left on whilst driving.
The connection between the camera and the monitor is via
a simple RCA cable. Only the YELLOW is used.
If more instructions are needed then you
should be getting this unit professionally installed
Of course all items supplied should be tested BEFORE
installation.
|
