CARAVAN SPECIAL
|
Caravaners - $430 Complete
|
|
|
Upgrade first camera to CCD Camera
|
|
|
Spiral Cable
|
|
Reversing Monitor tailor made for caravan
The monitors:
Simply select if you would like a monitor with a sunshield or one which
clips over your existing mirror. The sunshield monitor is supplied
with a window suction mount. The mirror LCD is ideal as it is a natural
place to look whilst driving but due to ambient light in many large
vehicles this monitor works best with tinted windows. Without the
window tint it may look washed out.
The cameras:
The system is supplied
with 1 x CMOS camera and 1 x CCD camera.
The CMOS is for reversing
The CCD is for viewing the camera looking down the road whilst driving.
The Cables:
The system is supplied with
1 x 7.5M twin cable for inside the vehicle
1 x 15M cable to the back of the caravan.
Powering this up is a breeze. Your installer will simply connect this to a power supply in your car and run the cables all the way back to the cameras. The same cables will power up the cameras. The system can be made to come on automatically in reverse but if towing the trip wire should not be connected as you will see the hitching post in reverse.
The remote control is not sent with this monitor as it is not needed
(and in fact it could be dangerous looking for it instead of keeping the
eyes on the road). If you do require the remote please specify
that you need it and it will be posted with the unit free.
Wiring hint: The
green trigger wire, when powered, will activate camera 2 (your car
cameras). When connected this system you can either not connect
this wire or connect it via a switch. Otherwise when reversing
your caravan you will see the image coming out of the car.

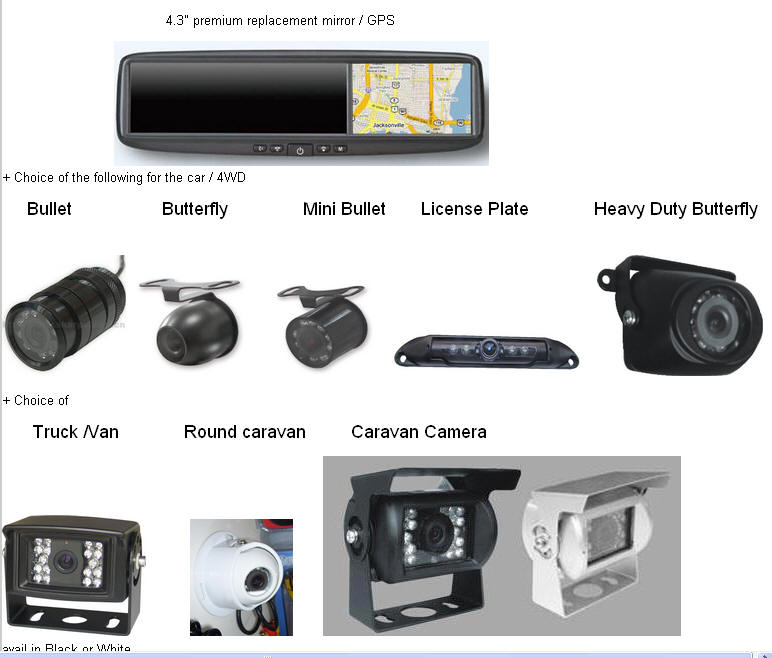

CMOS Reversing Camera Options. These are also available in CCD - add $50

Number plate 180º Butterfly 150º Mini Bullet 110º Bullet 92º
CCD Caravan / Trailer / Float Camera Options (with audio): These are also available in CMOS - Subtract $50

Truck (Black or White) Caravan
Spiral connector Add $ 70
Add the spiral connector for $70. The connectors come with covers and screw on connections making them the very best on the market.
Add this Multiplexer for a split screen
In basic terms this unit will allow
you to have a split screen whilst driving. it can
be made to automatically switch to full screen whilst
the vehicle is in reverse
Features
2 x Camera inputs and 1 AV output
Two trigger wires support auto switching to the working camera in full
screen
TV mode: PAL/NTSC
Audio output can be selected from Cam 1 and CAM 2
Trigger Priority Cam 1
Mirror and normal can be set up
Power Short protection
Especially designed for vehicle application
|
