Digital Panel!! 7" wide screen Touch Screen Monitor with built in GPS, Region Free DVD Player, DivX, Digital TV Tuner, AM/FM Radio, SD card, Bluetooth, Ipod Interface USB and Steering Wheel control interface. Complete with GPS and Digital TV antenna,
Reversing camera and integrated parking sensors
FEATURES :
Fully Touch Screen Control,
Built in GPS system (music or radio workable when in GPS mode)
Cool and unique Graphical User Interface design
Built in Bluetooth for hand free call (will switch automatically to Bluetooth mode when receiving an incoming call and then switch back)
Function description:
Motorized 7inch 16:9 TFT LCD monitor
Digital touch screen with Graphical User Interface.
Detachable panel
DVD/VCD/CD/MP3/MPEG4/DIVX/CD-R/WMA/JPEG
Full Touch Screen Control,

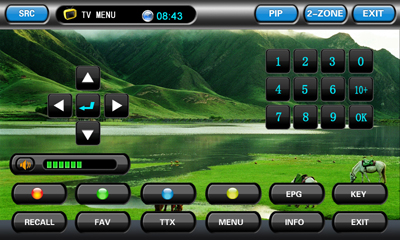

Built in Digital DVB-T TV tuner
Built in FM/AM tuner
Built in GPS system
GPS (music or radio while in GPS Navigation mode)
GPS Navigation voice street names announced
Built in Bluetooth for hands free call
Built in4×45W amplifier
4ch audio output
1 A/V input (1 video,2 audio), 1 A/V output (1 video,4 audio).
Auto rear viewing function for optional reversing camera
Mute at telephone calling
Picture adjustment (brightness, contrast, color, settings)
Card size Full function remote control
With treble/medium/bass adjust function.
Screen angle / Position Memory
USB jack
RCA line out
Electronic & mechanical anti-shock system

READ THE FULL USER
MANUAL HERE
READ THE STEERING WHEEL INTERFACE SETUP
READ THE OZI EXPLORER HELP FILE HERE
MAPPING: When the Ozi Explorer GPS
option is purchased the unit will display 2 icons when
selecting navigation. You will have the option of
selecting either the standard turn by turn road mapping
or the off road mapping. The Off-road mapping
software is supplied by Ozi Explorer. The mapping for
both the off road is supplied by Australain Geoscience maps
using a 1:250K scale. The only help available for the
use for how to use Ozi Explorer is via the link above,
via online forums or private tuition. The areas for the
Geoscience maps cover the entire Australian continent as
well as the entire coast line. If you have other maps
or other scales then these can be added to the SD card.
Select either Road maps or off road maps - no need to
change SD cards!
Ozi Explorer area covered using NAT Maps from Aus Geoscience
for Off road
and Marine mapping.
These maps have been digitally converted for Ozi
Explorer.
Ozi Explorer CE features:
Mark waypoints
Breadcrumb trail
Log & save tracks
Many map zoom levels
More/Less detailed maps
Automatic loading of next map
Roads
Major road to public or private track
with minimum or no construction
Hydrographic
Watercourse, canals, perennial lake, bore, well,
wind pump, waterhole, spring, swamp
Cultural features
Pipelines, tanks, homesteads, ruins, landmarks,
fence, levee, quarry, mine
Boundaries
State & territory borders, reserves and prohibited
areas
Railways
Tracks, stations, sidings and abandoned lines
Vegetation
Forest, scrubland, rain forest, plantation, orchard
Aircraft facilities
Airport, landing strip, helipad
Offshore & Coastal features
Boat ramp, lighthouse, reef, shoal, wreck, costal
flat, mangrove
Relief
Elevation, sand dunes, cliffs, sand ridges, pinnacle
and contour lines with values.
Ozi Explorer area covered using Aus Geoscience off road
mapping:
|
