Black White
Waterproof and weather resistant plastic housing for outdoor use
Night vision available, I Red distance: 3-5 meter, day/night sensor for automatic adjustment

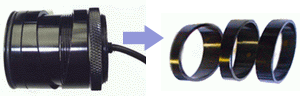

Angle Adjustment Rings
| |
CMOS |
CCD |
| Image Device |
OV910 |
SHARP |
| TV system |
NTSC |
NTSC |
| Effective Area |
510 x 492 pixels |
510 x 492 pixels |
| Sensing Area |
4.69mm X 3.54 mm |
4.9mm x 3.7mm |
| Scanning System |
2.1 Interlace |
2.1 Interlace |
| Resolution |
380 TV lines |
420 Lines |
| Horizontal Sync Frequency |
15.734 Khz |
15.734 Khz |
| Vertical Sync Frequency |
60 Hz |
60 Hz |
| Video Output |
1.0vp-p, 75 Ohm |
1.0vp-p, 75 Ohm |
| Gamma Consumption |
0.45 |
0.45 |
| AGC |
Auto |
Auto |
| S/N Ratio |
Better than 48db |
Better than 48db |
| White Balance |
Auto |
Auto |
| Electronic Shutter |
1/60~1/15,000 Seconds |
1/60~1/10,000 Seconds |
| BLC |
Auto |
Auto |
| Current Consumption |
200mA |
300mA |
| Power Supply |
DC12V |
DC12V |
| Operating Temperature |
－10°C~46°C , RH95％ |
－20°C~70°C , RH95％ |
| MAX Storage Temperature |
－30°C~60°C，RH95％ |
－40°C~80°C，RH95％ |
| MAX Lens |
f=6.0mm / F = 2.0 |
f=3.6mm / F = 2.0 |
| Lens Angle |
92° |
92° |
| |
|
|
4 pin cabling

This heavy duty 3 in 1 cable carries audio / video and power and of
course has fully waterproof connections making it ideal for cars, 4WD,
trucks, caravans, horse floats etc.4 Pin Cables
|
|
When sent with above
|
|
7.5M Single (most cars)
(single camera system) |
|
|
7.5M Twin Cable (most cars)
(2M Split)
(twin camera system) |
|
|
10M Cable (smaller caravan /
trailer) (single camera) |
|
|
15M Cable (standard caravan)
(single camera)
|
|
|
15M Twin Cable
(2M
Split)
(two cameras placed on caravan or truck) |
|
|
20M Cable (truck)
(single camera) |
|
|
|
|
|
7.5M 4Pin to RCA Cable (inc
power wire) for existing RCA monitors |
|
|
F - F
RCA adapter
for above cable if your
unit has female connector |
|
|
4Pin - Male RCA Cable
(500mm) To use this
camera on existing RCA wiring |
|
|
|
|
|
Woza Single Cable
(one camera on caravan / trailer
/ truck) |
|
|
Woza Twin Cable
(two cameras on the caravan
/ trailer / truck) |
|
Woza Triple Cable
(three cameras on the caravan
/ trailer / truck) |
|

Single Woza Cable
Twin Woza Cable
|
