| Digital tuner with twin antenna |
TUNER:

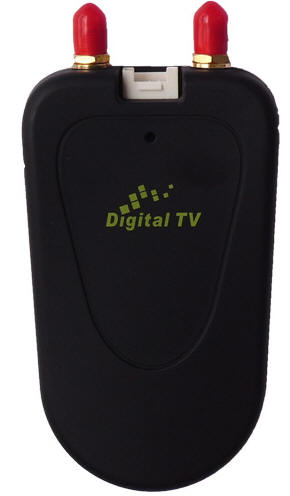

DVB- T998 High Speed H.264 (MPEG4) DVB-T TV RECEIVER
Compliant with DVB-T standards
Twin tuners with diversity structure TV box for high
speed driving
Frequency Range: VHF-H:174~230Mhz UHF:470~862Mhz
Special design for car using, support high speed above
160km/hours
Video decoder MPEG-4/H.264/AVC
Audio decoder MPEG/AAC/ PCM
DVB subtitling ETSI 300473 compliant and OSD tele-text
Logic channel number
Easy first installation
Supports multiple OSD languages menu
EPG (Electronic Program Guide) with now and next and 7
days events
Channel search with automatic/manual scan
Various channel editing function ( favourite, move,
lock, delete )
Standby consumption < 1W
ANTENNA:
An internal glass mount antenna for adhesive mounting on
the middle of the car windscreen or on side panes.
The antenna should be mounted in a location that allows
at least 5 mm between antenna and vehicle body
For best performance avoid locating the antenna in areas
which have heating wires or tinted areas of glass
Features:
1.Working Voltage: DC 10.5V~16V
2.Working current: 30mA~60mA
3.Rated voltage: DC 12V
4.Rated Current: 40mA~50mA
5.Working Frequency: 170MHz~240MHz (Band III)
1452MHz~1492MHz (L-Band)
6.Output Gain: 15dB±3dB (Band Ⅲ)
12dB±3Db (L-Band)
7.Output impedance: 75Ω
8.V.S.W.R: ≤2.0:1
9.NOISE Figure: ≤2dB
10.Working Temperature: -30°C~+80°C
11.Storage Temperature: -40°C~+90°C
12.Cable specification: RG174, 5M
13.Connector: SMA
