BUTTERFLY
CAMERA

Waterproof and weather resistant housing for outdoor use

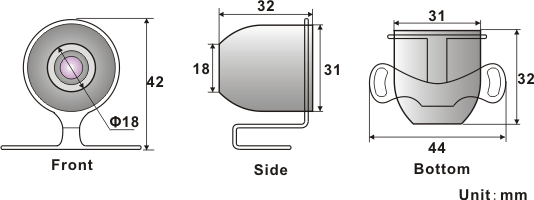

Compact size
|
CMOS |
CCD |
| IMAGE DEVICE |
OV7950 |
SHARP 1/4" CCD |
| SYSTEM |
NTSC |
NTSC |
| EFFECTIVE PIXELS |
510 X 491 PIXELS |
512 X 582 PIXELS |
| SENSING AREA |
4.69MM X 3.54MM |
3.6MM X 2.7MM |
| SCANNING SYSTEM |
2:1 INTERLACE |
|
| SYNC SYSTEM |
INTERNAL |
INTERNAL |
| RESOLUTION |
380 TV LINES |
420 TV LINES |
| HORIZONTAL FREQ |
17.734 |
|
| VERTICAL FREQ |
60HZ |
|
| MIN ILLUMINATION |
3LUX / F 2.0 |
1.0LUX / F2.0 |
| VIDEO OUTPUT |
1.0V 75 Ohm |
1.0V 75 Ohm |
| GAMMA CONSUMPTION |
0.45 |
0.45 |
| AGC |
AUTO |
AUTO |
| S/N RATIO |
BETTER THAN 48DB |
BETTER THAN 48DB |
| WHITE BALANCE |
AUTO |
AUTO |
| ELECTRONIC SHUTTER |
1/15,000 SECOND |
1/10,000 SECOND |
| BLC |
AUTO |
AUTO |
| CURRENT CONSUMPTION |
100MA |
120mA |
| POWER SUPPLY |
12v |
12v |
| OPERATING TEMP |
-10C - 46C RH95% MAX |
-20C - 70C RH95%MAX |
| STORAGE TEMP |
-30 - 60C RH95% MAX |
-40C - 85C RH95% MAX |
| LENS |
f=2.1mm / F=2.0 |
f=2.1 / F=2.0 |
| LENS ANGLE |
150 DEGREES |
140 DEGREES |
| |
|
|
| |
|
|
4 pin cabling

This heavy duty 3 in 1 cable carries audio / video and power and of
course has fully waterproof connections making it ideal for cars, 4WD,
trucks, caravans, horse floats etc.4 Pin Cables
|
|
When sent with above
|
|
7.5M Single most cars
|
|
|
7.5M Twin Cars 4WD Towing
|
|
|
10M larger 4WD, Vans
|
|
|
15M Standard Caravan
|
|
|
15M Twin Cable
|
|
|
20M Trucks etc
|
|
| |
|
|
Spiral 4 Pin Single Cable sent with system
|
|
|
Spiral 4 Pin Twin Cable sent with system
|
|
A single spiral is used for when one camera is used on
a single caravan / trailer system. For vehicles with 2 cameras
(i.e. horse float) a twin spiral cable is used in conjunction with a
twin 7.5m cable from the monitor.
|
