This camera is available only in white
Brash Imports .. to place an order for this or any item contact me at office@brashimports.com.au
Caravan Round White CMOS $ 85 Pickup/Posted
CCD $150 Pick up/Posted
Caravan camera with Infra red and Audio
This camera is available only in white
Features
Made to be placed on the back of a caravan
CMOS CCD
|
1 / 3” COLOR CMOS SENSOR SPECIFICATIONS Image Device: OV7910 TV System: PAL / NTSC Effective Pixels: 512 x 582 pixels / 512 x 492 pixels Sensing Area: 4.9 x 7.3 Scanning System: 2:1Interlace Sync. System: Internal Resolution: 380TV lines Horizontal Sync. Frequency: 15.625KHz / 15.734KHz Vertical Sync. Frequency : 50Hz / 60Hz Minimum Illumination: 0 Lux/F1.2 with IR Video Output: 1.0vp-p, 75Ohm Microphone: Optional Gamma Consumption: 0.45 AGC: Auto S/N Ratio: Better than 48dB White Balance: Auto Electronic Shutter: 1/60~1/15,000 Seconds BLC: Auto Current Consumption: 200mA Power Supply: DC12V Operating Temperature: －20°C~75°C , RH95％ MAX Storage Temperature: －40°C~85°C，RH95％ MAX Lens: f=3.6mm / F = 2.0
Lens Angle: 92°
|
1 / 3” COLOR CCD SENSOR SPECIFICATIONS Image Device: SHARP TV System: PAL / NTSC Effective Pixels: 538 x 582 pixels / 512 x 492 pixels Sensing Area: 4.9mm x 3.7mm Scanning System: 2:1Interlace Sync. System: Internal Resolution: 420TV lines Horizontal Sync. Frequency: 15.625KHz / 15.734KHz Vertical Sync. Frequency: 50Hz / 60Hz Minimum Illumination: 0 Lux/F1.2 with IR Microphone: Optional Video Output: 1.0vp-p, 75Ohm Gamma Consumption: 0.45 AGC: Auto S/N Ratio: Better than 48dB White Balance: Auto Electronic Shutter: 1/60(NTSC) / 1/10,000 Seconds BLC: Auto Current Consumption: Max. 280mA Power Supply: DC12V
Operating Temperature:
－20°C~70°C
, RH95％

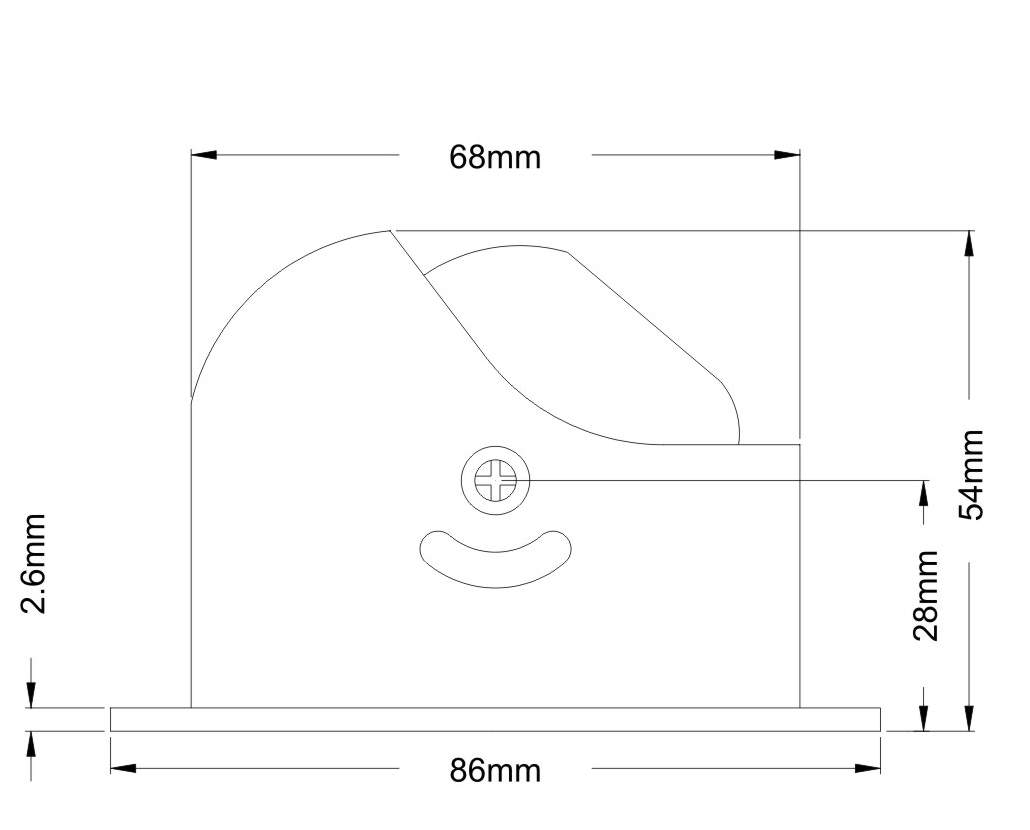

MAX Lens: f=3.6mm/F=2.0 Lens Angle: 92° Size: 68mm x 55mm |
These cameras can be supplied
with a 4 pin connector to RCA adaptor if needed for $2.50
7.5M $ 18
10M $ 20
15M $ 25
20M $ 30
