BI086

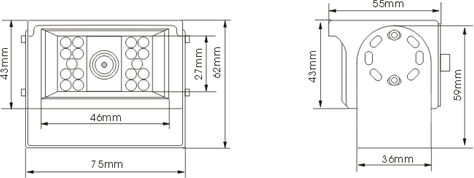

 Model Reversing Camera with Infra Red L.e.d's, and Mirror mode feature!




Features

Waterproof without extra Housing (IP69)
Night vision available, It's a Color Camera in the day and will become a B/W camera at night
Outer Setting for Normal or Mirroring Video Output Mode
12vDV
Auto Iris
Video Connection via 4 Pin
Infra Red for night vision
Mirror function





   CMOS                                                                                                                            CCD

1 / 3” COLOR CMOS SENSOR SPECIFICATIONS CW131

Image Device:  OV7910

TV System: PAL / NTSC

Effective Pixels:  628 x 582 pixels / 510 x 492 pixels

Sensing Area:  5.78mm x 4.19mm / 4.69mm x 3.54mm

Scanning System: 2:1Interlace

Sync. System:   Internal

Resolution:  380TV lines

Horizontal Sync. Frequency: 15.625KHz  / 15.734KHz

Vertical Sync. Frequency :  50Hz  / 60Hz

Minimum Illumination: 0 Lux/F1.2 with IR

Video Output: 1.0vp-p, 75Ohm

Microphone:  Optional

Gamma Consumption:  0.45

AGC:  Auto

S/N Ratio:  Better than 48dB

White Balance:  Auto

Electronic Shutter: 1/60~1/15,000 Seconds

BLC:  Auto

Current Consumption:  200mA

Power Supply:  DC12V

Operating Temperature:  -10°C~46°C , RH95% MAX

Storage Temperature:   -30°C~60°C,RH95% MAX

Lens: f=6.0mm / F = 2.0

Lens Angle: 92°



 1 / 3” COLOR CCD SENSOR SPECIFICATIONS CW142

Image Device:  SHARP

TV System: PAL / NTSC

Effective Pixels:  512 x 582 pixels / 512 x 492 pixels

Sensing Area:  4.9mm x 3.7mm

Scanning System: 2:1Interlace

Sync. System:   Internal

Resolution:  600TV lines

Horizontal Sync. Frequency: 15.625KHz  / 15.734KHz

Vertical Sync. Frequency: 50Hz  / 60Hz

Minimum Illumination: 0 Lux/F1.2 with IR

Microphone: Optional

Video Output: 1.0vp-p, 75Ohm

Gamma Consumption:  0.45

AGC:  Auto

S/N Ratio:  Better than 48dB

White Balance:  Auto

Electronic Shutter: 1/60(NTSC) /   1/10,000 Seconds

BLC:  Auto

Current Consumption: Max. 300mA

Power Supply:  DC12V

Operating Temperature:  -20°C~70°C , RH95% MAX

Storage Temperature:   -40°C~80°C,RH95% MAX

Lens: f=3.6mm/F=2.0

Lens Angle: 92°



4 pin cabling


This heavy duty 3 in 1 cable carries audio / video and power and of course has fully waterproof connections making it ideal for cars, 4WD, trucks, caravans, horse floats etc.4 Pin Cables

  When sent with above
7.5M Single (most cars)                       (single camera system)
$20
7.5M Twin Cable (most cars)  (2M  Split)       (twin camera system)
$30
10M Cable  (smaller caravan / trailer) (single camera)
$25
15M Cable  (standard caravan)          (single camera)
$30
15M Twin Cable  (2M  Split)            (two cameras placed on caravan or truck)
$40
20M Cable   (truck)                           (single camera)
$35

7.5M 4Pin to RCA Cable (inc power wire)  for existing RCA monitors
$12.50
F - F  RCA adapter     for above cable if your unit has female connector
$1.50
4Pin - Male RCA Cable   (500mm) To use this camera on existing RCA wiring
$5.00

Woza Single Cable    (one camera on caravan / trailer / truck)
$80
Woza Twin Cable      (two cameras on the caravan / trailer / truck)
$95
Woza Triple Cable      (three cameras on the caravan / trailer / truck)
$120



     Single Woza Cable                                                                                Twin Woza Cable
