BITC450 |
Features
Korean professional design, unique wall mounted + desktop design,
USA TI 300MHz high speed processor
USA BioNano core fingerprint algorithm of high speed and stability
New generation fully sealed, waterproof and dustproof fingerprint sensor
User name display and human voice prompt

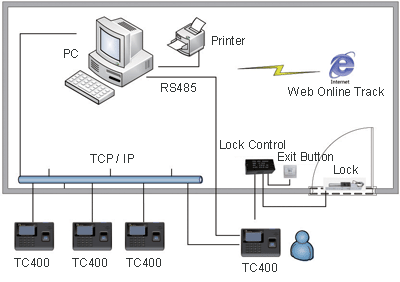

Realtime data transfer and WEB online tracking
Optional access controller for separate type secure access control
Standard USB/485 communication, dry contact output, Wiegand26 output, standard TCP/IP module for TC450
Identification method: fingerprint only, ID + password, ID + fingerprint
Fingerprint capacity: 2000
Record capacity: 50000
Identification speed: <0.5 second
Size: 130mm(w)×180mm(h)×35mm(d)
Item |
Description |
Sensor |
Anviz Optical Sensor |
LCD |
128 x 64 Blue LCD |
Identification Method |
1:1, 1:N, ID + PW |
Identification Time |
<=1 Sec |
Register Method |
Fingerprint only / ID + Password / ID + Fingerprint |
Scan Area |
21mm*18mm |
Resolution |
500DPI |
Fingerprint Capacity |
2000 |
Record Capacity |
50000 |
FRR |
0.001% |
FAR |
0.00001% |
Standard Port |
Standard USB/485 communication, dry contact output, Wiegand26 output, standard TCP/IP |
Working Current |
0.5A -1.0A |
Sleeping Current |
0.5A |
ESD Tolerance |
>15000V |
Power |
DC 5V |
Temperature/Humidity |
-10℃-60 ℃ / 20% - 80% |
Material |
ABS Plastic |
Size |
130mm ×180mm × 35mm |
Color |
Black |
Read the hardware manual (3MB)
Get the software here (5MB)
Software/hardware support is available at
http://www.bio-office.com/en/products.asp
SC021 Access Controller |
SC021 Access Controller
Info
SC021 is a simple, secure and cost effective access controller with high
security level. SC021 doesn’t require any software, which makes it
extremely easy to use. SC021 only accepts encrypted Wiegand signal by
Anviz to ensure high security level. Furthermore, its anti-thunder,
anti-static electricity, short-circuit protection function makes SC021
outstanding among similar products.
Features
Simple setup for door-open privilege. No background software needed
Support Anviz encrypted Wiegand for high security level
Two standard ports for fingerprint or card readers
Support dry contact signal output
Support 12V power supply for EM locks
Special anti-thunder, anti-static electricity and short-circuit
protection design
Simple setup for door-open privilege. No background software needed
Support Anviz encrypted Wiegand for high security level
Two standard ports for fingerprint or card readers
Support dry contact signal output
Support 12V power supply for EM locks
Special anti-thunder, anti-static electricity and short-circuit protection design
