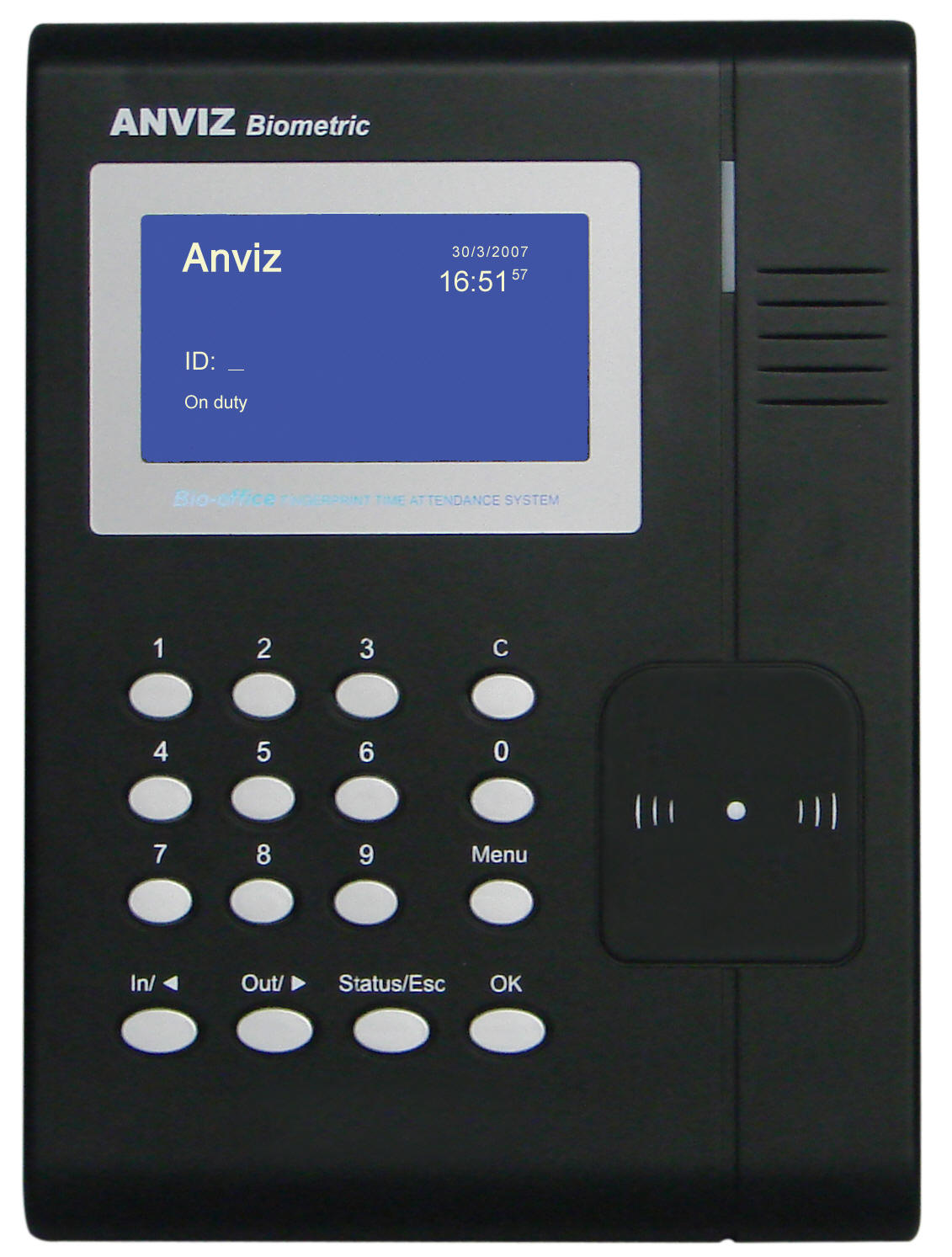

Advanced Time and Attendance Access Control System
Features
·USA Philips 32 bit ARM processor
·User name display and human voice prompt

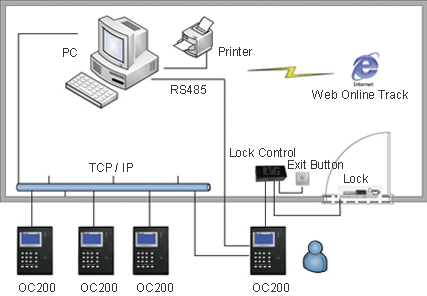

·Real time data transfer and WEB online tracking
·Optional SC021 or SC822 access controller for separate type secure access control
·Standard RFID module, (optional Mifare/HID module avail)
·Standard TCP/IP, RS232/485 communication, dry contact output, Wiegand26 output,
Standard USB pen drive module
·Identification method: ID + password, ID + card, card only
·User capacity: 8000
·Record capacity: 50000
·Size: 140mm(w)×190mm(h)×30mm(d)
Item |
Description |
Card reader |
RFID Card Reader |
Support Card |
EM4001/4102 memory cards or compatible card |
LCD |
128 x 64 Stylish blue screen |
Operating Distance |
Maximum 20CM |
Operation Time |
<0.2 Sec |
Card Capacity |
8000 |
Transaction Capacity |
50000 |
Standard Port |
Standard TCP/IP, RS232/485 communication, dry contact output, Wiegand26 output,
Standard USB pen drive module |
Card |
RFID/Mifare/HID Card |
Power |
DC12V |
Temperature/Humidity |
-10℃-60 ℃ / 20% - 80% |
Material |
ABS Plastic |
Size |
140mm(w)×190mm(h)×30mm(d) |
Color |
Black |
Read the hardware manual (5MB)
Get the software here (4MB)
Software/hardware support is available at
http://www.bio-office.com/en/products.asp

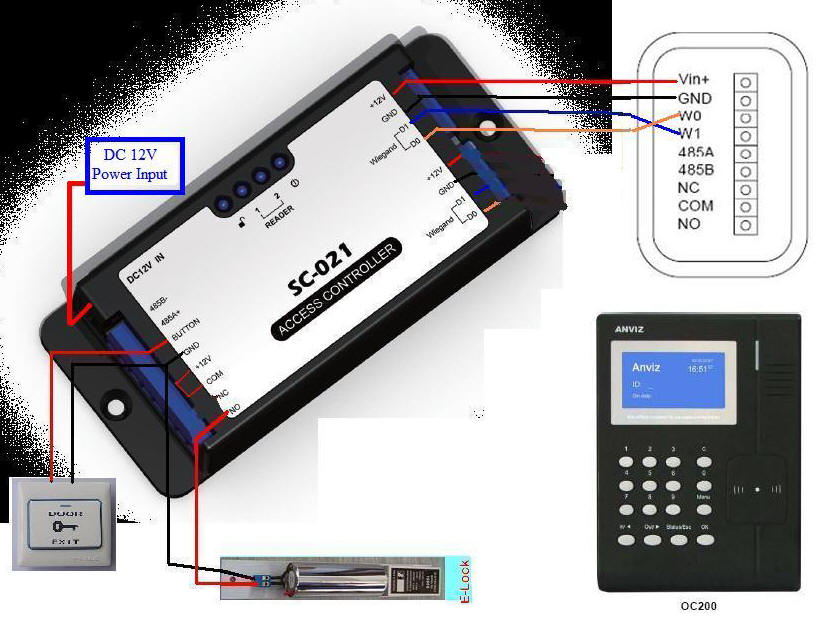

SC021 Access Controller
Info
SC021 is a simple, secure and cost effective access controller with high
security level. SC021 doesn’t require any software, which makes it extremely easy to use. SC021 only accepts encrypted Wiegand signal by Anviz to ensure high security level. Furthermore, its anti-thunder, anti-static electricity, short-circuit protection function makes SC021 outstanding among similar products.
Feature
Simple setup for door-open privilege. No background software needed
Support Anviz encrypted Wiegand for high security level
Two standard ports for fingerprint or card readers
Support dry contact signal output
Support 12V power supply for EM locks
Special anti-thunder, anti-static electricity and short-circuit protection design
Simple setup for door-open privilege. No background software needed
Support Anviz encrypted Wiegand for high security level
Two standard ports for fingerprint or card readers
Support dry contact signal output
Support 12V power supply for EM locks
Special anti-thunder, anti-static electricity and short-circuit protection design
|
