BI4318A 4.3" Replacement mirror
- No arm
|
|
|
No 1 Arm
(Most Toyota, Holden, Ford, Mazda,
Mitsubishi) |
|
|
No 2 Arm
(Honda accord / odyssey / Mitsubishi Gallant) |
|
|
No 3 Arm
(Most European Cars) |
|
|
No 7 Arm
(Most Korean Cars) |
|
|

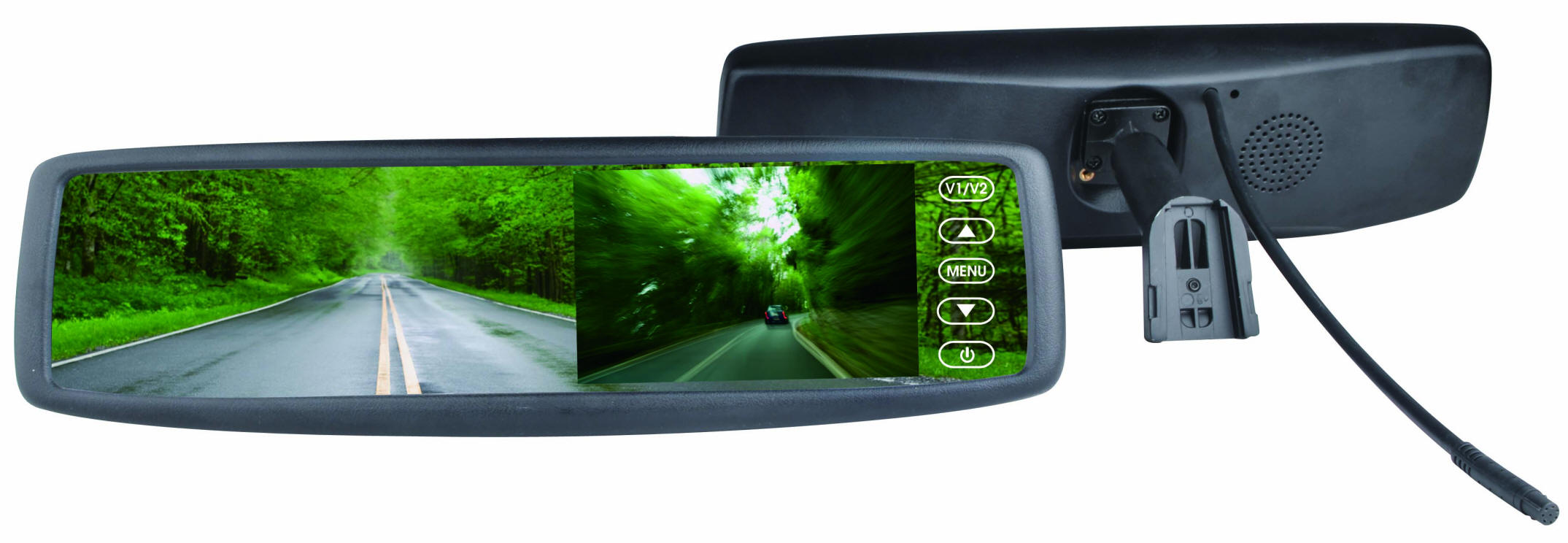

BI4318B 4.3" Clip over mirror
|
|
4.3"
Mirror Monitor replacement arm
or clip over
Monitor Features:
4.3inch TFT LCD
Sharp Color TFT-LCD monitor
NTSC/PAL system
16:9 mode
Brightness / contrast / color adjustment
Operation is display on screen by OSD menu
Inputs - 2 x RCA
Angle : H:100; VL 80;
Bluetooth: Optional
Brightness:250 Contrast: 300

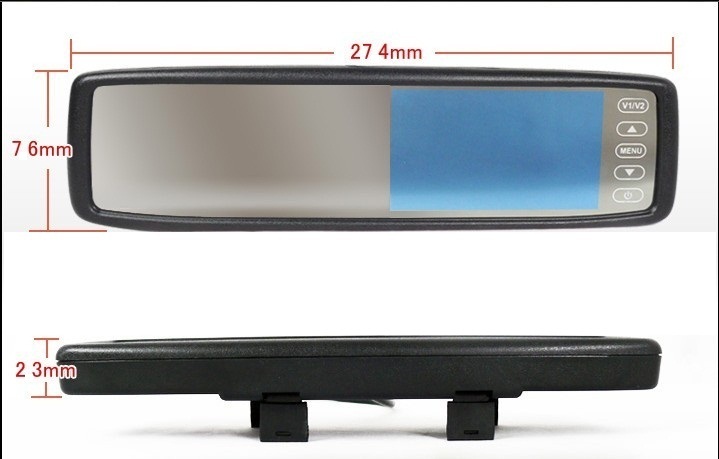

Overall size is approx 274mm x 76mm and will fit nearly every car
The unit is supplied with a replacement arm and mounting block.
The arm will slide onto most vehicles existing mounting blocks and has
been tested on Toyotas, Fords, Holdens, Nissans. If this arm does
not fit over the existing block then you will need to use the block
supplied and place it next to the existing block, DO NOT try to
remove your existing block.
Other arms
Arm No 2 is available for Honda Accord and Odyssey,
Vitara
Arm No 3 is available for Passat, Bora, Audi, Skoda,
Jetta, Suzuki Swift
Arm No 7 is available for Hyundai Sonata, Elantras
Please contact prior to purchase to ensure the stock of the arm required
is available.
View
the arm catalogue here The other arms are by special order and
can take 4 - 5 weeks.
The special brackets apply but are not limited to the car models
mentioned in the catalogue.
Please consult with your installer as to which arm suits your car

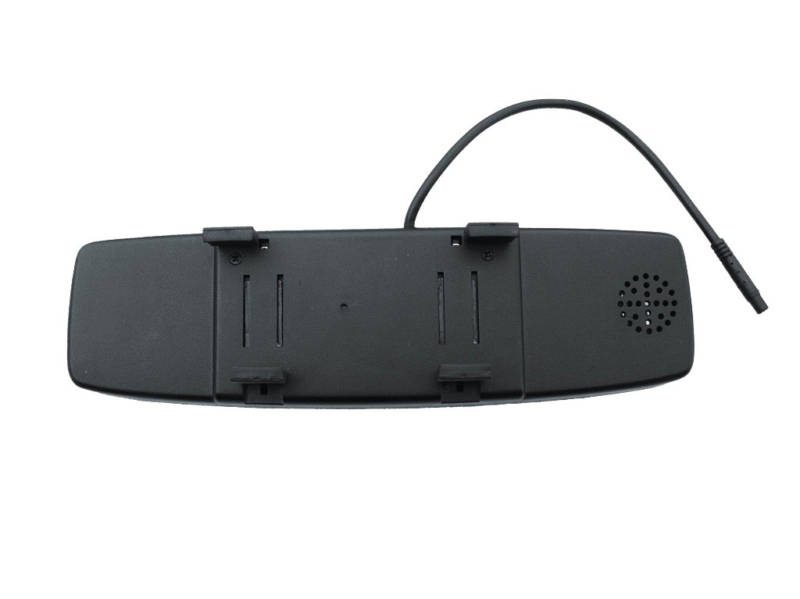

Clip over rear view.

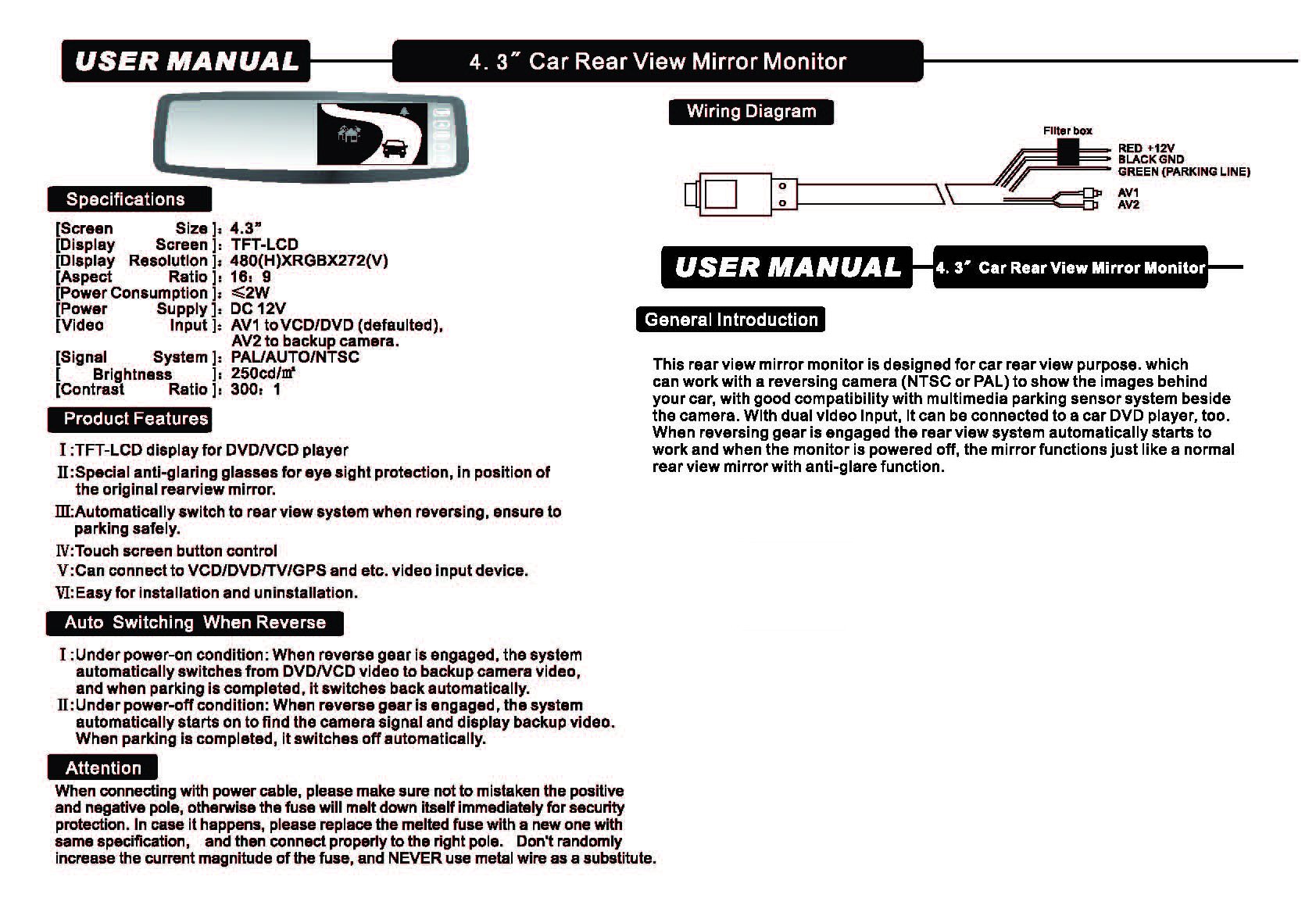

READ THE FULL MANUAL HERE
Camera Options:

Bullet Number Plate Miniature
Tailgate A
Miniature Tailgate B

Heavy Duty Butterfly
Caravan Camera
Miniature Tailgate C
|
Camera Options
|
CMOS
|
|
Bullet
CMOS |
|
|
Number Plate
CMOS
|
|
|
Miniature Tailgate
A CMOS |
|
|
Truck / Van
|
|
|
Miniature Tailgate C CCD |
|
First Camera is automatically supplied with a 6M RCA cable
Second Camera is supplied with both 6M and 15M RCA cabling
GENERAL CONNECTIONS FOR ALL RCA MONITORS:
Both Camera and monitor need to be powered by connecting
Red - Positive
Black - Negative
If the power cable does not have Red/Black wires then
you will need to test using a multi meter. The inside
of the plug is positive, the outside negative
Some monitors may also have a green wire which, when
connected to the positive side of the reversing light
will make the camera display on input no 2. If
connecting a second camera then this wire should not be
connected (or a simple switch put in to disable it when
the second camera is connected). The monitor can be
manually turned on to display the camera at any time and
can be left on whilst driving.
The connection between the camera and the monitor is via
a simple RCA cable. Only the YELLOW is used.
If more instructions are needed then you
should be getting this unit professionally installed
Of course all items supplied should be tested BEFORE
installation.
|
