Brash Imports .. to place an order for this or any item contact me at office@brashimports.com.au
Model p-701-12
Price $
490 Trade
$ 500 Pickup/Posted

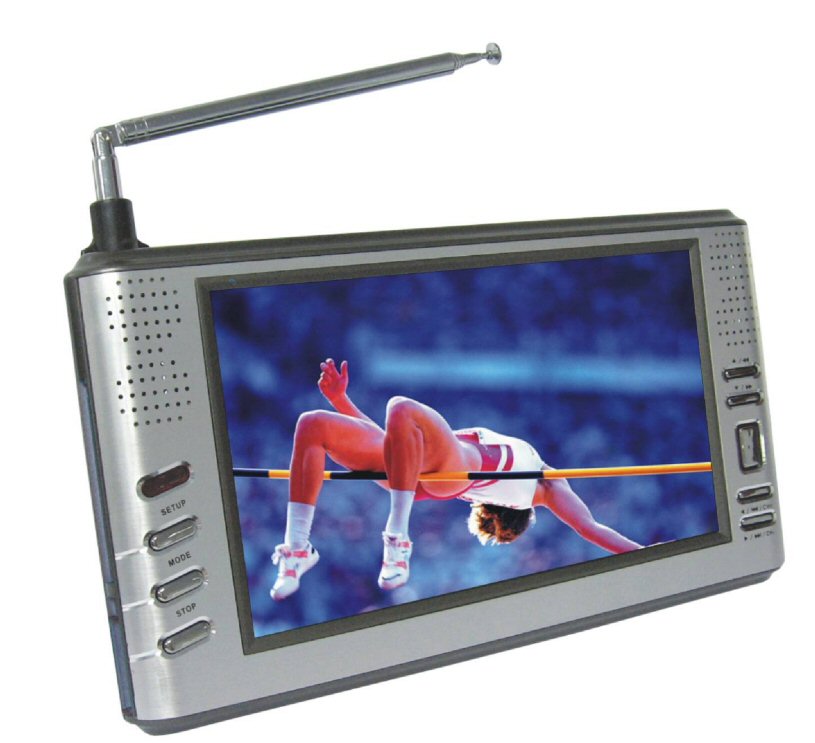

Portable media player with 40GB H/drive Digital &
Analogue TV Tuner
- now with record function!
Built in 2.5 inch hard disc, could play multimedia files(
Compatible MP1, MP2, MP3, DIVX(Above 4.0 edition), JPEG etc);
The hard disc may use as mobile hard disc; The hard disc is a standard 2.5" and
can be upsized by user
DVD navigation play
High clear video recording function of DVB-T, TV & AV IN to DIVX saving
onto hard disc or SD card. Resolution is up to 720×480
DVB-T( Digital Video Broadcasting - Terrestrial) receiving ( 6M, 7M, 8M)
Full system Analog TV receiving ( PAL, NTSC, SECAM)
4 in 1 card reader, compatible CF, SD, MIMI SD, MMC, RS-MMC, MS, MS PRO, MS DUO
Full system AV IN function
USB DEVICE 2.0
7’TFT-LCD, use LED backlight
Built in rechargeable Li-Poly battery play for 2 hours continuously. The battery
may replace voluntarily
Fashion metal panel
|
PMP |
|||||||
|
Compatible |
MP1, MP2,MP3, DIVX, JPEG etc |
||||||
|
DVB-T |
|||||||
|
Tuner |
Receiving Frequency: VHF-L, VHF-H, UHF |
||||||
|
6MHz, 7MHz & 8MHz |
|||||||
|
Input Level: -78 ~ -20 dBm |
|||||||
|
Input Impedance: 75 Ohm |
|||||||
|
Demodulation |
Demodulation: QPSK, QAM16, QAM64 |
||||||
|
Wave Type: COFDM(Coded Orthogonal Frequency Division Multiplexing) |
|||||||
|
Mode: 2K, 4K, 8K |
|||||||
|
Guard Interval: 1/4, 1/8, 1/16, 1/32 |
|||||||
|
FEC: 1/2, 2/3, 3/4, 5/6, 7/8 |
|||||||
|
AV output |
Video output level: 1.0Vp-p |
||||||
|
Video output: 75 Ohm |
|||||||
|
Audio output frequency range: 20HZ-20KHZ |
|||||||
|
TV |
|||||||
|
TV System |
PAL, NTSC and SECAM |
||||||
|
Receiving Channel |
VHF1-12 channels, UHF13-69 channels, CATV |
||||||
|
Recorder |
|||||||
|
Format |
DIVX |
||||||
|
Resolution |
720×480(NTSC)/720×576(PAL) |
||||||
|
Card reader |
|
||||||
|
Compatible |
CF, SD, MINI SD, MMC, RS-MMC, MS, MS PRO, MS DUO |
||||||
|
Other |
|||||||
|
USB |
USB DEVICE 2.0 |
||||||
|
Video system |
PAL/AUTO/NTSC |
||||||
|
Audio output (analog audio) |
Output Voltage: 1V, load impedance: 10K |
||||||
|
Video Output |
Output level: 1Vp-p, load impedance: 75 |
||||||
|
Switching Power Adapter |
AC100-240V, input 12V, 2.5A output |
||||||
|
0-40 ℃ |
||||||
|
Power consumption |
< 15W |
||||||
|
Size |
215×131×27（mm） |
||||||
