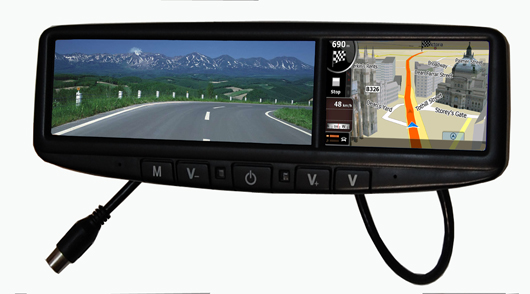

4.3" GPS Mirror Monitor with Bluetooth,
FM out & 3 inputs
This system combines the
very best of GPS, Hands free Bluetooth and has 3 camera
inputs for reversing/ towing. When in reverse the
monitor will automatically switch to reverse image or
you can manually turn either camera on - PERFECT

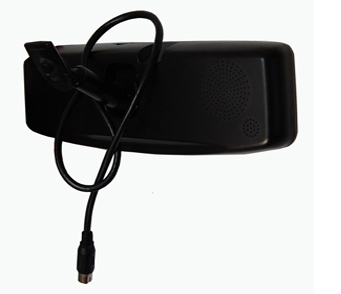

It replaces your existing mirror and comes with a
mounting arm for the windscreen
Latest mapping and announces street names
for turn by turn etc.
Brightness and Color, Contrast controls
Three ways video input
Support for 8GB SD card.
FM transmitter
Can be connected with camera for safe parking
When the car is in reverse the rear view image will
automatically appear
Play video MP4, AVI, ASF, WMV,MP3, WMA, WAV format
Support JPEG, PDF image format
Audio frequency: 20Hz-20KHz.5dB
Audio S/N ratio: ≥85dB
Operation temperature: -10℃ to 55℃
Power consumption: ≤8W
Operated by DC 8V-32V
Width 310mm
The unit is supplied with a replacement
arm and mounting block. The arm will slide onto
most vehicles existing mounting blocks and has been
tested on Toyotas, Fords, Holdens, Nissans. If
this arm does not fit over the existing block then you
will need to use the block supplied and place it next to
the existing block, DO NOT try to remove your
existing block.
Other arms
Arm No 2 is available for Honda Accord and Odyssey
Arm No 3 is available for Passat, Bora, Audi, Skoda,
Jetta
Arm No 7 is available for Hyundai Sonata, Elantras
Please contact prior to purchase to ensure the stock of
the arm required is available.
View the arm catalogue here The other arms are
by special order and can take 4 - 5 weeks.
The special brackets apply but are not limited to the
car models mentioned in the catalogue.
Please consult with your installer as to which arm suits
your car
READ THE HARDWARE MANUAL HERE
Wired Camera Options:
Camera Options:

Bullet Number Plate
Miniature Tailgate Heavy
Duty Butterfly
These cameras are supplied with 7.5M of RCA cabling.
|
Camera Options
|
CMOS
|
|
Bullet
|
|
|
Number Plate
|
|
|
Heavy Duty Butterfly CMOS |
|
|
Heavy Duty Butterfly CCD
|
|
|
Miniature Tailgate
|
|
Second Camera – These cameras are supplied with both 7.5M and 15M RCA cabling cabling
GENERAL CONNECTIONS FOR ALL RCA MONITORS:
Both Camera and monitor need to be powered by connecting
Red - Positive
Black - Negative
If the power cable does not have Red/Black wires then
you will need to test using a multi meter. The inside
of the plug is positive, the outside negative
Some monitors may also have a green wire which, when
connected to the positive side of the reversing light
will make the camera display on input no 2. If
connecting a second camera then this wire should not be
connected (or a simple switch put in to disable it when
the second camera is connected). The monitor can be
manually turned on to display the camera at any time and
can be left on whilst driving.
The connection between the camera and the monitor is via
a simple RCA cable. Only the YELLOW is used.
If more instructions are needed then you
should be getting this unit professionally installed
Of course all items supplied should be tested BEFORE
installation..
|
