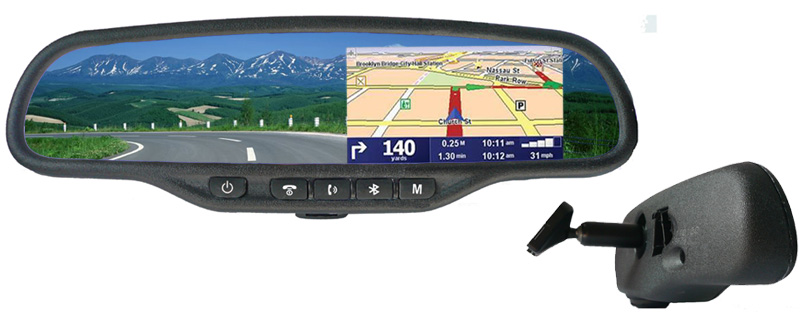

4.3" GPS Mirror Monitor with Bluetooth,
FM out & 2 inputs
This system combines the
very best of GPS, Hands free Bluetooth and has 2 camera
inputs for reversing/ towing. When in reverse the
monitor will automatically switch to reverse image or
you can manually turn either camera on - PERFECT
It replaces your existing mirror
Latest mapping (Sensis R15) and announces street names
for turn by turn etc.
Brightness and Color, Contrast controls
Three video input
Can be connected with camera for safe parking
When the car is in reverse the rearview image will
automatically appear
Play video MP4, AVI, ASF, WMV,MP3, WMA, WAV format
Support JPEG,PDF image format
Audio frequency: 20Hz-20KHz.5dB
Audio S/N ratio: ≥85dB
Operation temperature: -10℃ to 55℃
Power consumption: ≤8W
Operated by DC 8V-32V
Width 275mm
READ THE FULL MAPPING MANUAL HERE
READ THE HARDWARE MANUAL HERE
Camera Options:

Bullet Number Plate
Miniature Tailgate
These cameras are supplied with 7.5M of RCA cabling.
|
Camera Options
|
CMOS
|
|
Bullet
|
|
|
Number Plate
|
|
|
Miniature Tailgate
|
|
Second Camera – These cameras are supplied with both 7.5M and 15M RCA cabling
GENERAL CONNECTIONS FOR ALL RCA MONITORS:
Both Camera and monitor need to be powered by connecting
Red - Positive
Black - Negative
If the power cable does not have Red/Black wires then
you will need to test using a multi meter. The inside
of the plug is positive, the outside negative
Some monitors may also have a green wire which, when
connected to the positive side of the reversing light
will make the camera display on input no 2. If
connecting a second camera then this wire should not be
connected (or a simple switch put in to disable it when
the second camera is connected). The monitor can be
manually turned on to display the camera at any time and
can be left on whilst driving.
The connection between the camera and the monitor is via
a simple RCA cable. Only the YELLOW is used.
If more instructions are needed then you
should be getting this unit professionally installed
Of course all items supplied should be tested BEFORE
installation..
|
