Brash Imports   .. to place an order for this or any item contact me at office@brashimports.com.au

Model BI560                                                                                    $ 250 Pickup/Posted


Wireless camera kit for car, Van, SUV etc.

 TFT LCD monitor with wide view angle and high resolution display.
Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing.
English and French are optional.
Automatic back-lights for buttons.
Automatic brightness control.
Full-function remote controller.
Multiple video formats available: AUTO /PAL/ NTSC.
4 channel receiver,1 channel for video output and 1 channel for audio output.
Operates from 12~32V. Support 12V or 24V automobile battery.
Automatically switches to back-up, left or right side camera views.
Speaker available and users can control the sound level from control panel.
.On-board Speaker.

2.4G WIRELESS RECEIVER MONITOR SPECIFICATIONS
Product : 5.6”TFT-LCD Color monitor with built-in 2.4G wireless receiver
Audio output:1W
Power Supply: Automobile storage battery(12~32V)
Power consumption: about 8W
Loudspeaker: one 4.0cm round loudspeaker
Outer dimension:145mm(W) x 136mm(H) x 31.5mm(T)
Operating Temperature: -20~+70°C, 90%RH
Storage Temperature: -30~+80°C, 90%RH
Receiving Frequency Range: 2400~2483MHZ
Demodulation Mode: FM
Range: 238m
Frequency Group Supported: 2414 ，2432 ，2450 ，2468
2
Reception capability:-80dB
Transmitter:50MW
Resolution:960(H) x 234(V)
Contrast: 300:1
Brightness:350cd/m
Viewing angle:U:45 / D:65,R/L:65
Dot pitch:0.118(W) x 0.362(H)

NOTE THAT 2.4MgHtz IS AUSTRALIAN STANDARD

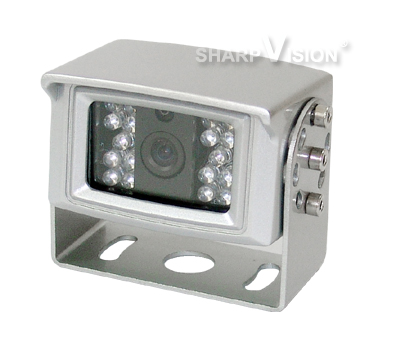

                                    THIS CAMERA IS AVAILABLE IN BLACK OR WHITE

The above wireless cameras are available for this unit.

$ 70   Bullet CMOS  I.Red
$ 130 Bullet CCD
$ 95   Square CMOS
$ 160 Square CCD
$ 95   Side View CMOS
$ 155 Side View CCD
$  75  Multi Use CMOS


order now
