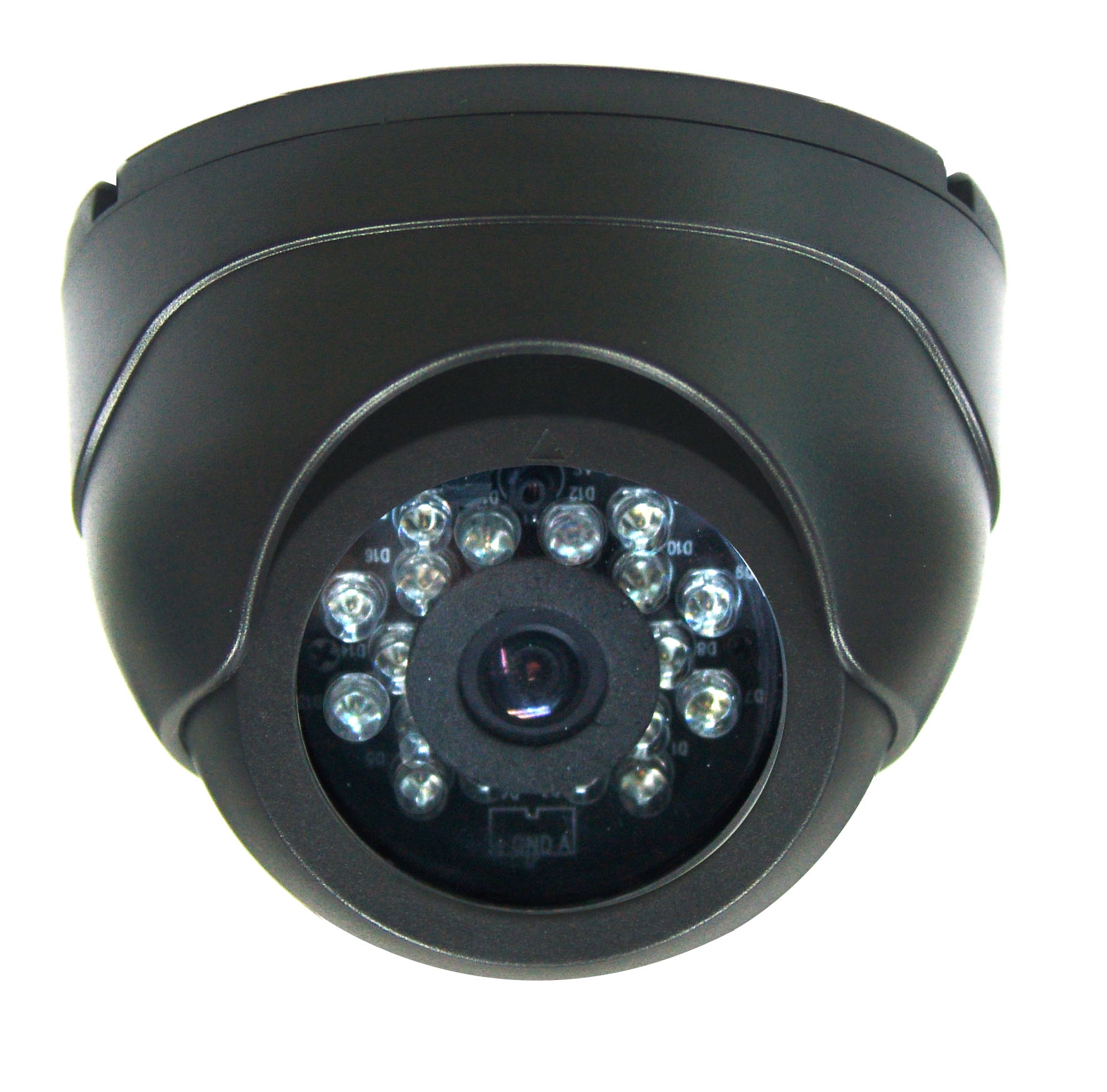

Dome Roof camera $ 85 Pickup/Posted
|
Waterproof and anti-vandal housing
Weather resistant
Compact profile
24 IR LEDs
IR Distance: approx. 10m
High resolution
1 / 3" COLOR CMOS SENSOR SPECIFICATIONS
With Audio and IR
Image Device: Sharp CCD
TV System: NTSC (PAL available - 4 weeks)
Effective Pixels: 628 x 582 pixels
Sensing Area: 5.78mm x 4.19mm / 4.69mm x 3.54mm
Scanning System: 2:1Interlace
Sync. System: Internal
Resolution: 380TV lines
Horizontal Sync. Frequency: 15.625KHz / 15.734KHz
Vertical Sync. Frequency : 50Hz / 60Hz
Minimum Illumination: 0 Lux/F1.2 with IR
Video Output: 1.0vp-p, 75Ohm
Microphone: Optional
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/60~1/15,000 Seconds
BLC: Auto
Current Consumption: 200mA
Power Supply: DC12V
Operating Temperature:
－10°C~46°C , RH95％ MAXStorage Temperature:
－30°C~60°C，RH95％ MAXLens: f=6.0mm /3.6mm F = 2.0
Lens Angle: 92 degrees
