Brash Imports   .. to place an order for this or any item contact me at office@brashimports.com.au

                                                         CMOS  Price  $80 Trade    $ 85 Pickup/Posted
                                                         CCD     Price  $140 Trade  $150 Pick up/Posted

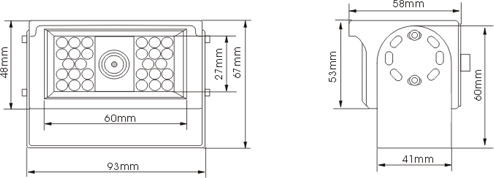

Model Reversing Camera with Infra Red L.e.d's, and Mirror mode feature!

CMOS                                                                                   CCD

Features

Waterproof without extra Housing
Night vision available, It's a Color Camera in the day and will become a B/W camera at night
Outer Setting for Normal or Mirroring Video Output Mode
12vDV
Auto Iris
Video Connection via RCA
Infra Red for night vision
Mirror function





   CMOS                                                                                                     CCD

1 / 3” COLOR CMOS SENSOR SPECIFICATIONS

Image Device:  OV7910

TV System: PAL / NTSC

Effective Pixels:  628 x 582 pixels / 510 x 492 pixels

Sensing Area:  5.78mm x 4.19mm / 4.69mm x 3.54mm

Scanning System: 2:1Interlace

Sync. System:   Internal

Resolution:  380TV lines

Horizontal Sync. Frequency: 15.625KHz  / 15.734KHz

Vertical Sync. Frequency :  50Hz  / 60Hz

Minimum Illumination: 0 Lux/F1.2 with IR

Video Output: 1.0vp-p, 75Ohm

Microphone:  Optional

Gamma Consumption:  0.45

AGC:  Auto

S/N Ratio:  Better than 48dB

White Balance:  Auto

Electronic Shutter: 1/60~1/15,000 Seconds

BLC:  Auto

Current Consumption:  200mA

Power Supply:  DC12V

Operating Temperature:  －10°C~46°C , RH95％ MAX

Storage Temperature:   －30°C~60°C，RH95％ MAX

Lens: f=6.0mm / F = 2.0

Lens Angle: 92°



 1 / 3” COLOR CCD SENSOR SPECIFICATIONS

Image Device:  SHARP

TV System: PAL / NTSC

Effective Pixels:  512 x 582 pixels / 512 x 492 pixels

Sensing Area:  4.9mm x 3.7mm

Scanning System: 2:1Interlace

Sync. System:   Internal

Resolution:  420TV lines

Horizontal Sync. Frequency: 15.625KHz  / 15.734KHz

Vertical Sync. Frequency: 50Hz  / 60Hz

Minimum Illumination: 0 Lux/F1.2 with IR

Microphone: Optional

Video Output: 1.0vp-p, 75Ohm

Gamma Consumption:  0.45

AGC:  Auto

S/N Ratio:  Better than 48dB

White Balance:  Auto

Electronic Shutter: 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds

BLC:  Auto

Current Consumption: Max. 300mA

Power Supply:  DC12V

Operating Temperature:  －20°C~70°C , RH95％ MAX
Storage Temperature:   －40°C~80°C，RH95％ MAX

Lens: f=3.6mm/F=2.0

Lens Angle: 92°














order now

5  Metre RCA cables are available separately for $5
10 Metre RCA cables are available separately for $10
