Model P070IA
Price $ 675 Trade
$ 600 Pickup/Posted

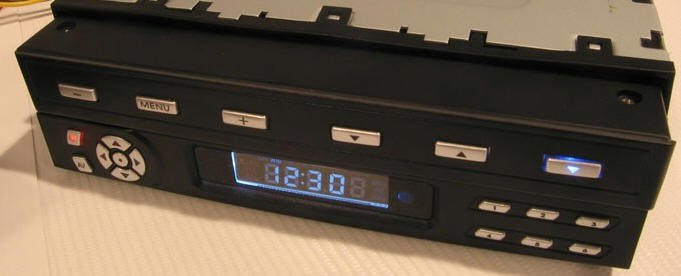

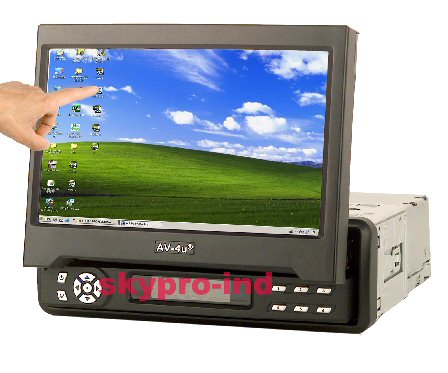

Motorized 7" Widescreen Monitor with TV VGA and USB connection
Features

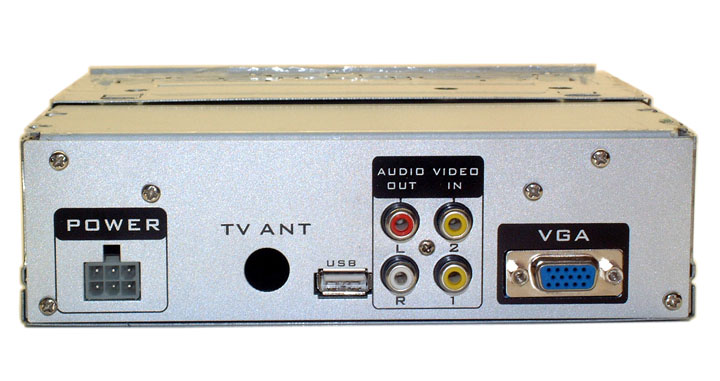

This in-dash fully motorized VGA touch screen mounts in a single one DIN dash size mount. It features a VGA input, touch panel (USB) and two composite video inputs. It also has a TV tuner (with left and right audio outputs, also PAL adapter required for antenna connection). The display with a VGA input can display resolutions up to 1024*768 resolution. There is an on screen display which controls the full monitor functions can be operated by the remote control or the front buttons.
Specifications:
1. Monitor Display Mode 16x9
2. Resolution: 640x480~1280x768 (native: 800x480) (WVGA) (Panasonic LCD)
3. Pixel 0.06 X 0.18
4. Valid Display Area 7 inches
5. Contrast 250 : 1
6. Brightness 400 nits
7. View Angle: 40 degree in Horizontal
8. 30 degree in Vertical
9. Working temperature 0-50 degree

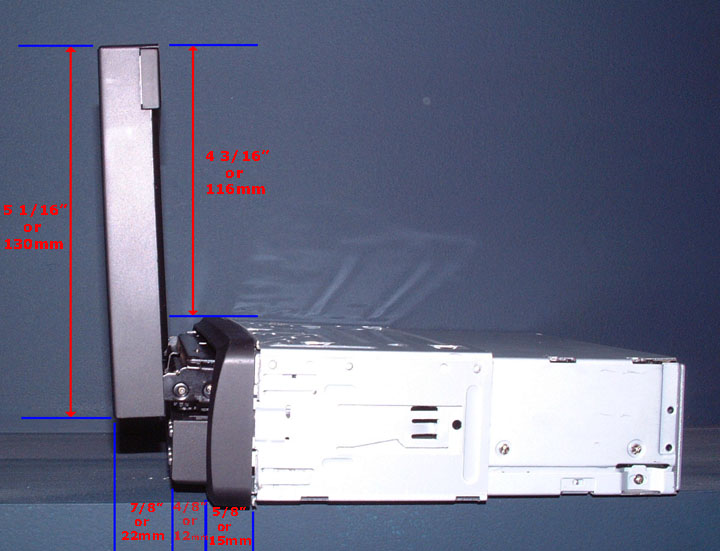

10. Standard 1-DIN size: Length 7.5" (190mm) x Width 7" (179mm) x Height 2"
(50mm)
Touch panel:
1. Simulative four wire resistance
2. Thickness 1.4mm
3. Transparent Rate 82
4. Rigidity of Surface there are 2H-3H to prevent scraping
5. Linearity <+/-1.5
6. Working Life of signal dot more than 5000 thousand times
7. Operating Temperature: -10 degree to 50 degree
8. Operating humidity: 15% to 85
TV:
1. Covering Range of the frequency: 84.25MHZ to 903.25MHZ
2. Most Sensitivity 42dB
3. Working Temperature: 10 to +60 degrees
4. Relative humidity: <=95%
5. Input resistance of the antenna:75
6. Support Chromatic System: PAL/BG,PAL/DK,PAL/I NTSC M/N
ACCESSORIES:
1. VGA connector and USB connector
2. All wires & RCA wiring harness & Mounting Hardware

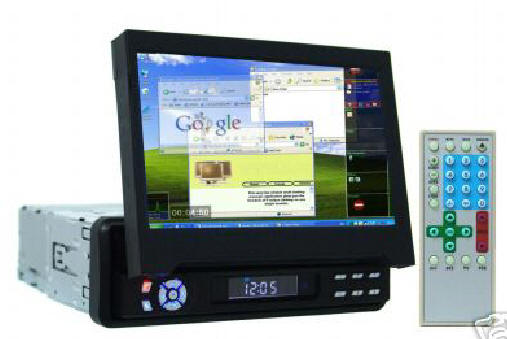

3. Remote Controller
4. Installation CD (driver and software for touch screen)
5. English Operation Manual
6. Detachable Mounting Bracket
