BI636
4 pin  $160
BI636
  RCA  $160

Tailgate miniature camera






Features

Made to be placed on the back of a cars

°°



1 / 4” COLOR CCD SENSOR SPECIFICATIONS

Image Device:  SHARP

TV System:   NTSC

Effective Pixels:  512 x 492 pixels

Sensing Area:  3.6mm x 2.7mm

Sync. System:   Internal

Resolution:  420TV lines

Horizontal Sync. Frequency: 15.625KHz  / 15.734KHz

Vertical Sync. Frequency: 50Hz  / 60Hz

Minimum Illumination: 0 Lux/F1.2

Microphone: Not Avail

Video Output: 1.0vp-p, 75Ohm

Gamma Consumption:  0.45

AGC:  On

S/N Ratio:  Better than 48dB

White Balance:  Auto

Electronic Shutter: 1/60(NTSC) /   1/10,000 Seconds

BLC:  Auto

Current Consumption: Max. 110mA

Power Supply:  DC12V

Operating Temperature:  -20°C~70°C , RH95% MAX

Storage Temperature:   -40°C~80°C,RH95% MAX

Lens: f=1.8mm

Lens Angle: 180°

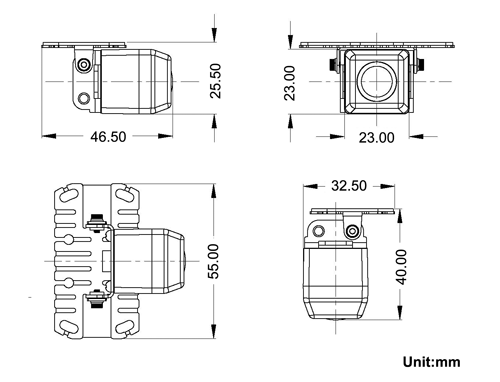

 Size:  23mm x 23mm



4 pin cabling


This heavy duty 3 in 1 cable carries audio / video and power and of course has fully waterproof connections making it ideal for cars, 4WD, trucks, caravans, horse floats etc.4 Pin Cables

  When sent with above
7.5M Single (most cars)                       (single camera system)
$15
7.5M Twin Cable (most cars)  (2M  Split)       (twin camera system)
$25
10M Cable  (smaller caravan / trailer) (single camera)
$20
15M Cable  (standard caravan)          (single camera)
$25
15M Twin Cable  (2M  Split)            (two cameras placed on caravan or truck)
$35
20M Cable   (truck)                           (single camera)
$30

7.5M 4Pin to RCA Cable (inc power wire)  for existing RCA monitors
$7.50
F - F  RCA adapter     for above cable if your unit has female connector
$1.50
4Pin - Male RCA Cable   (500mm) To use this camera on existing RCA wiring
$2.50

Woza Single Cable    (one camera on caravan / trailer / truck)
$70
Woza Twin Cable      (two cameras on the caravan / trailer / truck)
$85
Woza Triple Cable      (three cameras on the caravan / trailer / truck)
$120



     Single Woza Cable                                                                                Twin Woza Cable
