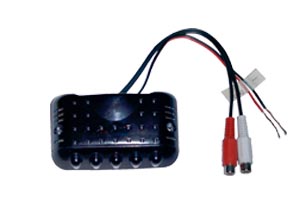

Infra Red Sender Unit
Power requirement: 12VDC/100mA.
Infrared wavelength: 850nm .
Modulation: +/-50kHz .
Carrier frequency:
right: 2.8MHz, left: 2.3MHz .
Effective range: over 10 meters (straight) .
Distortion: <1% Frequency .
response: 20Hz to 20kHz .
Power input tolerance: 11V to 14V .
S/N ratio: >/=60dB .
Power consumption: 1.0W .
Audio input range: 0.2V to 2V (RMS) .
Dimensions approx: 90.8x50.5x20.3(mm)
This unit will connect to audio out of your DVD/PS2 via RCA outputs to transmit to I.Red Head
phones
|
