Wireless Doorbell System
 +  +
The handset is available in Black or in White. If you have a
preference please contact before purchasing.
Features
The 7456 is a new generation digital wireless system. in this design, digital audio and digital video signals are integrated in the same 2.4G channel, allowing 2 cameras and 2 monitors in one system with low interference.
1) Maximum 2 cameras and 2 monitors
2) Choice of 2.4G ISM digital public frequency resource 2402 - 2483MHz
3) Transmission at 20dBm, receiving -100dBm
4) with 8 - 12 digital audio serial input, DAC output, 8K audio acquisition for good audio quality. Audio volume presetable in 4 levels
5) MJPEG digital coding and decoding, 10 - 15 frames per second.
6) Reliable audio/video communication distance 300m in open area
7) With AFH auto frequency jumping technology with 2.4G and Bluetooth at the same time.
8) With auto sleep mode, saving battery consumption in stand by status
9) With external power supply for camera units DC 3.5-6V with this the lock cannot opened without the monitor unit.
10) Random 40 bit encryption for digital and video to secure the communication
11) Random communication, monitoring and remote lock opening functions.
12) with communication, monitor and remote lock opening functions.

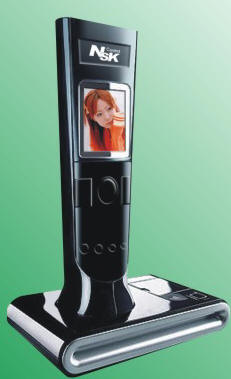

Monitor: 1) calling/intercom 2) Door release 3) Table surface mounted
Color Door Phone
2.4" TFT LCD
Door release
AC 110 - 240V
Wiring: 2 Wires
Communication Duration: 45 - 60 Sec
Dimension 130 x 95.5 x 62mm
Protection Level: IP54
Lock Controller: 1)
AC input
Metal Case
receiving signal to control both NC and NO locks
Dimension 116 x 165 x 32mm
Protection Level: IP54
Digital Wireless Video Door Phone Manual1.pdf
Standard type electric strike NO (with no power the door is locked)
size : 150L*39.5W*28H (mm)
|
