Digital screen!!!! Budget Reversing Monitor
Perfect for small - medium size cars
 OR
Features:
Monitor:
Specifications：
Screen size: 3.5 inch (diagonal length)
Aspect Ratio : 4 : 3 image
Input:2 ways video inputs
System: PAL & NTSC auto-switching
Resolution: 320 x R.G.B x 240 dots
High resolution, digital panel
Power supply: DC 12 V
Remote control, OSD menu;
Compact design
Sunshade design around
switch function stand
CMOS Camera for 90 degree
Camera with night vision
Monitor Size 100mm x 80mm
The remote control is not sent with
this monitor as it is not needed (and in fact it could
be dangerous looking for it instead of keeping the eyes
on the road). If you do require the remote please
specify that you need it and it will be posted with the
unit free.

Bullet Number Plate
These cameras are supplied with 7.5M of RCA cabling.
|
Camera Options
|
CMOS
|
|
Bullet
|
|
|
Number Plate
|
|
Second Camera – These cameras are supplied with both 7.5M and 15M RCA cabling
Wiring hint for 2 camera system. The green
trigger wire, when powered, will activate camera 2 (your car cameras).
When connected this system you can either not connect this wire or
connect it via a switch. Otherwise when reversing your caravan you
will see the image coming out of the car.

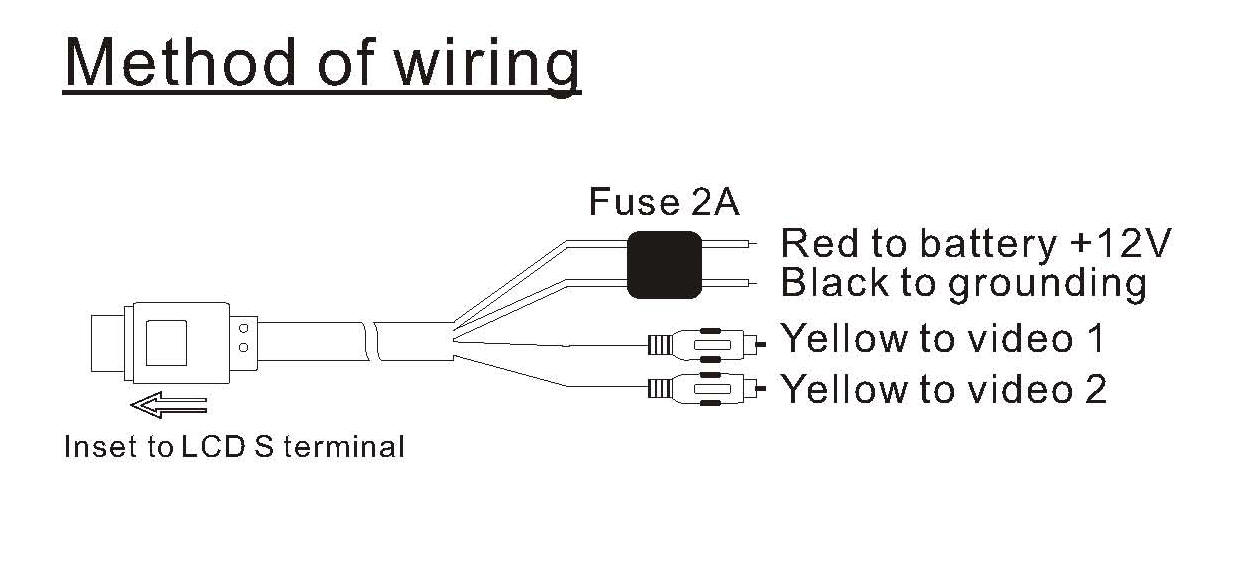

GENERAL CONNECTIONS FOR ALL RCA MONITORS:
Both Camera and monitor need to be powered by connecting
Red - Positive
Black - Negative
If the power cable does not have Red/Black wires then
you will need to test using a multi meter. The inside
of the plug is positive, the outside negative
Some monitors may also have a green wire which, when
connected to the positive side of the reversing light
will make the camera display on input no 2. If
connecting a second camera then this wire should not be
connected (or a simple switch put in to disable it when
the second camera is connected). The monitor can be
manually turned on to display the camera at any time and
can be left on whilst driving.
The connection between the camera and the monitor is via
a simple RCA cable. Only the YELLOW is used.
If more instructions are needed then you
should be getting this unit professionally installed
Of course all items supplied should be tested BEFORE
installation.
|
