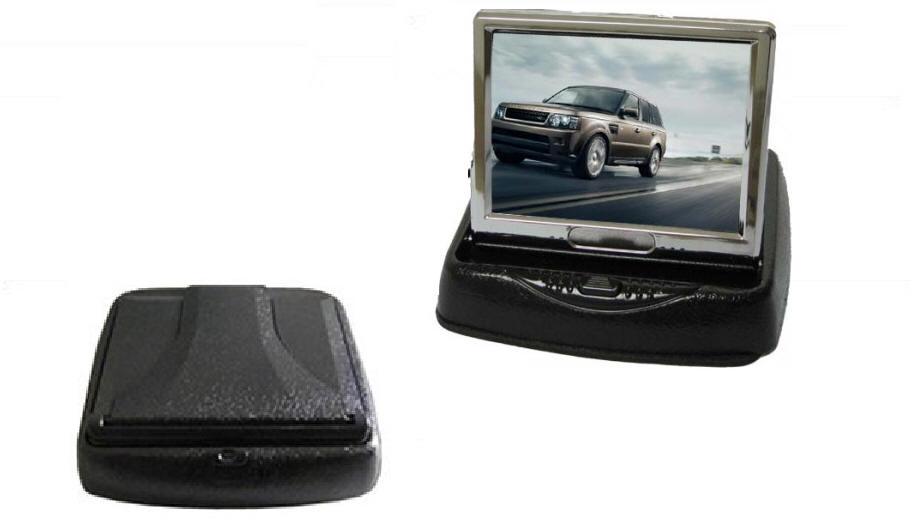

The 3.5" pop up monitor
is perfect for leaving on the dash. Simply pop it
up as needed.
For a complete system simply select the camera you would
like below
1) Screen size: 3.5 " Digital Color TFT LCD with brand new panel
2) 2 video input for rear view camera with 2nd camera option for caravan
(auto detects second input)
3) Blue screen function when no signal
4) 12V supply
5) Normal /mirror image adjustable
6) This monitor can be left on whilst driving for extended periods of time
6) Contrast 350:1
7) Pixel 650 x 320
7) Size 103mm x 103mm
Camera Options:

Bullet Number Plate Miniature
Tailgate A
Miniature Tailgate B

Heavy Duty Butterfly
Caravan Camera
Miniature Tailgate C
|
Camera Options
|
CMOS
|
|
Bullet
CMOS |
|
|
Number Plate
CMOS
|
|
|
Miniature Tailgate
A CMOS |
|
|
Truck / Van
|
|
|
Miniature Tailgate C CCD |
|
First Camera is automatically supplied with a 6M RCA cable
Second Camera is supplied with both 6M and 15M RCA cabling
GENERAL CONNECTIONS FOR ALL RCA MONITORS:
Both Camera and monitor need to be powered by connecting
Red - Positive
Black - Negative
If the power cable does not have Red/Black wires then
you will need to test using a multi meter. The inside
of the plug is positive, the outside negative
Some monitors may also have a green wire which, when
connected to the positive side of the reversing light
will make the camera display on input no 2. If
connecting a second camera then this wire should not be
connected (or a simple switch put in to disable it when
the second camera is connected). The monitor can be
manually turned on to display the camera at any time and
can be left on whilst driving.
The connection between the camera and the monitor is via
a simple RCA cable. Only the YELLOW is used.
If more instructions are needed then you
should be getting this unit professionally installed
Of course all items supplied should be tested BEFORE
installation.
|
