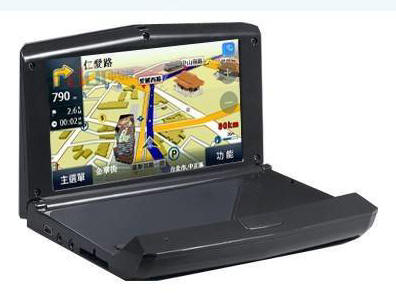

4.3" Dash mounted, pop up GPS with Bluetooth and camera input

180mm x 110mm
Features:
Push Button pop up
Microsoft Windows CE.NET 6.0
Comes with latest road mapping for Australia / New Zealand
The mapping will speak the name of the street as well as warn of red light / speed camera etc.
Memory: 128MB SDRAM NAND Flash
GPS Module: SiRF 3 Sensitive antenna, baud rate at 4800bps, 16 receiving channels
Location accuracy: 3-10m.90% accuracy
Antenna sensitivity: 0.1m/s
Bluetooth function: built-in Bluetooth module and antenna, which help you enjoy the functions of hand free communication, coming phone receiving and phone No. showing, dial and redial, as well as communication record search
GSM function: support GSM, voice services, MSM, coming phone receiving, call transfer, call waiting, tripartite talk etc., team call, broadcast, Private call etc.
FM transmit function: support FM audio transmit, frequency range 88MHZ-92MHZ.
AV_IN: in-car camera can connect to GPS by the AV in interface, which
turns the device to be an excellent rear view mirror of the car
Audio: play audio in MP3/WMA/PCM format, play modes include sequence, random, repeat; speaker and earphone jack output
Video: support MP4/ASF/WMV/AVI/DIVX formats,
Browse photo in the Format of BMP, JPG, PNG etc.
Memory slot: SD (up to 8GB) card and MMC card
System upgrade: upgrade online via TF card
Comes with Australian cigarette lighter adaptor,
The units are shipped with the latest road mapping (included in the
purchase price. Ozi Explorer is offered as an option and must be
done BEFORE the unit is shipped (or the unit be returned for registering
the unit etc)
READ THE
FULL ROAD MANUAL HERE
READ THE OZI EXPLORER HELP FILE HERE
MAPPING: When the Ozi Explorer GPS
option is purchased the unit will display 3 icons when
selecting navigation. You will have the option of
selecting either the standard turn by turn road mapping,
the off road or marine mapping. The Off-road and
marine mapping software is supplied by Ozi Explorer. The
mapping for both the Off road and marine is supplied by
Australian Geoscience maps using a 1:250K scale. The
only help available for the use for how to use Ozi
Explorer is via the link above, via online forums or
private tuition. The areas for the Geoscience maps cover
the entire Australian continent, entire coast line and
most popular areas of the South Pacific
(Fiji, Solomon's, New Caledonia, New
Zealand, Vanuatu etc). If you
have other maps or other scales then these can be added
to the SD card.
Select either Road maps or either Ozi Explorer option,
no
need to change SD cards!
Ozi Explorer area covered using NAT Maps from Aus Geoscience
for Off road
and Marine mapping.
These maps have been digitally converted for Ozi
Explorer.
Ozi Explorer CE features:
Mark waypoints
Breadcrumb trail
Log & save tracks
Many map zoom levels
More/Less detailed maps
Automatic loading of next map
Roads
Major road to public or private track
with minimum or no construction
Hydrographic
Watercourse, canals, perennial lake, bore, well,
wind pump, waterhole, spring, swamp
Cultural features
Pipelines, tanks, homesteads, ruins, landmarks,
fence, levee, quarry, mine
Boundaries
State & territory borders, reserves and prohibited
areas
Railways
Tracks, stations, sidings and abandoned lines
Vegetation
Forest, scrubland, rain forest, plantation, orchard
Aircraft facilities
Airport, landing strip, helipad
Offshore & Coastal features
Boat ramp, lighthouse, reef, shoal, wreck, costal
flat, mangrove
Relief
Elevation, sand dunes, cliffs, sand ridges, pinnacle
and contour lines with values.
When Ozi Explorer is loaded your navigation screen will
display as
giving you options for Road Mapping, Off Road and
Marine. Without this option your unit will default
to road mapping.
Ozi Explorer area covered using NAT Maps from Aus Geoscience
for Off road
and Marine mapping.
These maps have been digitally converted for Ozi
Explorer.
Ozi Explorer CE features:
Mark waypoints
Breadcrumb trail
Log & save tracks
Many map zoom levels
More/Less detailed maps
Automatic loading of next map
Roads
Major road to public or private track
with minimum or no construction
Hydrography
Watercourse, canals, perennial lake, bore, well,
windpump, waterhole, spring, swamp
Cultural features
Pipelines, tanks, homesteads, ruins, landmarks,
fence, levee, quarry, mine
Boundaries
State & territory borders, reserves and prohibited
areas
Railways
Tracks, stations, sidings and abandoned lines
Vegetation
Forest, scrubland, rain forest, plantation, orchard
Aircraft facilities
Airport, landing strip, helipad
Offshore & Coastal features
Boat ramp, lighthouse, reef, shoal, wreck, costal
flat, mangrove
Relief
Elevation, sand dunes, cliffs, sand ridges, pinnacle
and contour lines with values.
Camera Options:

Bullet Number Plate Miniature
Tailgate A
Miniature Tailgate B

Heavy Duty Butterfly
Caravan Camera
Miniature Tailgate C
|
Camera Options
|
CMOS
|
|
Bullet
CMOS |
|
|
Number Plate
CMOS
|
|
|
Miniature Tailgate
A CMOS |
|
|
Truck / Van
|
|
|
Miniature Tailgate C CCD |
|
First Camera is automatically supplied with a 6M RCA cable
Second Camera is supplied with both 6M and 15M RCA cabling
GENERAL CONNECTIONS FOR ALL RCA MONITORS:
Both Camera and monitor need to be powered by connecting
Red - Positive
Black - Negative
If the power cable does not have Red/Black wires then
you will need to test using a multi meter. The inside
of the plug is positive, the outside negative
Some monitors may also have a green wire which, when
connected to the positive side of the reversing light
will make the camera display on input no 2. If
connecting a second camera then this wire should not be
connected (or a simple switch put in to disable it when
the second camera is connected). The monitor can be
manually turned on to display the camera at any time and
can be left on whilst driving.
The connection between the camera and the monitor is via
a simple RCA cable. Only the YELLOW is used.
If more instructions are needed then you
should be getting this unit professionally installed
Of course all items supplied should be tested BEFORE
installation.
|
