Brash Imports   .. to place an order for this or any item contact me at office@brashimports.com.au

Model  BI 8028                                                                                    $ 345 Pickup/Posted

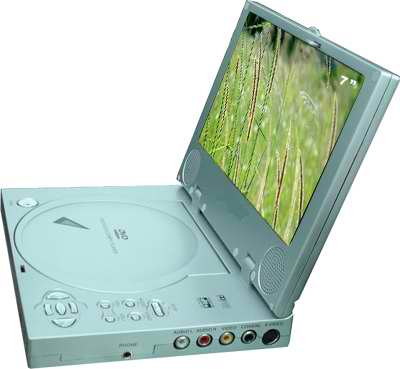

Mpeg 4/ Div X/ DVD Player with LG 7” TFT LCD with Digital / Analogue TV plus Games!

5 IN ONE COMBO UNIT!











Main Features:
-7"Diagonal Wide-screen TFT-LCD Monitor
-All in one (DVB-T/Analog TV/Game/USB/MPEG4/Card Reader/Game)
-Analog TV system support PAL/NTSC/SECAM
-Australian & European standard DVB-T digital TV
-Support MPEG4 file, DIVX4.X, or DIVX5.X
-Support 8-bit NES Game disc playing. Down load 8-bit game file (*.NES),
  put it into CE-R *or USB disc.
-Read USB flash disc or USB mini fix disc; NES 8-bit game with two handles;
 AV output /input function
-Read Card: Support Reading SD/MS PRO /MS PRO DUO/MMC Card.
-Compatible with DVD/MPEG4/VCD/SVCD/CVD/CD/JPEG/MP3/DVD+R
 /DVD-R/DVD+RW/DVD-RW/CD-R/CD-RW
-On-screen Menu Icons to help guide operation
-Virtual surround sound (v.s.s) output
-Rechargeable Li-ion battery

Standard Accessories：
-Audio/ Video Cables
-Remote Control
-AC/DC adaptor
-Car power adaptor
-Rechargeable Battery Pack
-Headphone
-Joystick
-User's manual
-CATV Cable

Accessories:
-Carry Bag
-Car antenna








Specifications:

7" TFT LCD Panel
Built-in DVB-T & Analog TV Tuner
DVB-T Protocol & MPEG-2 digital compliant
DVB-T band width: 7MHz or /8MHz
Multi-languages on screen display
Analog TV is compatible with PAL(B/G, PAL D/K, PAL I, M, N), NTSC(M), SECAM(B/G, D/K, L)
Compatible with DVD/MPEG4/SVCD/CVD/VCD/CD/MP3/DVD-R/DVD+R/DVD-RW/DVD+RW/CD-R/CD-RW.
Read Card: Support Reading SD/MS PRO /MS PRO DUO/MMC Card
Support MPEG4 file playing, DIVX4.X or DIVX5.X.
Support 8-bit NES Game disc playing, you can play game at house or outdoor. You can download some 8-bit game file |
(*. NES), put it into a CD-R or a USD disc, and play it.
On-screen Menu Icons to help guide operation
High energy Lithium Polymer Battery inside
SPECIFICATIONS
DVD
Video D/A converter		 Video D/A converter 10bit
Horizontal resolution 500line
DVD
Audio output		 Frequency response 20Hz-20KHz
Dynamic range  80db
Audio D/A converter 96KHz/24bit
Specification  Image resolution 480×RGB×234 pixels
Signal system PAL/ NTSC/ AUTO
Power source Input 100-240V 50Hz/60Hz Output DC 13.8V
Power consumption 12W
Weight 0.90kg
Dimension (L×W×H) 208×155×40mm
Analog
TV System		 Antenna impedance  75 ohm
Channel number 200 channels (CH0--CH199)
TV system PAL BG/PAL DK/PAL I/NTSCM
SECAM BG/SECAM DK/SECAML
PAL M/PAL N
TV frequency  VHF: 162--444MHZ
UHF: 448--862MHZ
DVB-T
Tuner and Channel		 RF input connector F-TYPE, IEC 169-2, Female.
Frequency range VHF: 174--230MHZ
UHF: 470--862MHZ
DVB-T
Decoder		 Transport stream MPEG-2 ISO/IEC 13818
Profile level MPEG-2 MAIN PROFILE@MAINLEVEL
Input rate MAX 15Mbit/s
Video format 4:3 / 16:9 Switchable
Audio format MPEG LAYER Ⅰ&Ⅱ, 32/44.1/48KHz
Video output CVBS(Default)
This specification is subject to be changed without any notice



With all portable units it is recommended that the unit be connected to an external antenna.
Digital Reception will depend on proximity to broadcast towers.  Check www.dba.org.au for tower locations.


Read the full online manual here
