Brash Imports   .. to place an order for this or any item contact me at office@brashimports.com.au

Model NP60                                              Price from $ 290 Trade $ 300 Pickup/Posted
          NP70 (for larger vehicles/trucks)      Price from $ 320 Trade $ 330 Pickup/Posted

Reversing system for car/van/truck





Monitor Features:

5.8inch TFT LCD and matching camera or 7" screen
New sharp TFT-LCD monitor
NTSC/PAL system
16:9 mode
Brightness / contrast / color adjustment
Operation is display on screen by OSD menu
Inputs - RCA
Angle :  145 degrees
Brightness:350 Contrast: 250  (7" has 400 /250)
Another video connect with 300thousand resolution camera
Full function remote control
Overall size is 9½" x 4" x 1" and will fit nearly every car for 5.8" LCD

The unit will has adjustable clips and so it will clip on, over your existing mirror.
When this unit is not displaying an image it becomes a ordinary mirror

Camera Features:

Color CMOS lens
Image Sensor: 1/3" Color CMOS with Infra Red
Total Pixels: 628 x 582
Resolution: 420 TV Lines
Min Illumination: 2.0 Lux
Lens: 6.Omm
Video Output: 1.0Vpp composite video at 75ohm
Operating Temp -20C ~ 50C
Power Supply DC12V >300mA
Dimensions: 28mm x 54mm
Viewing Angle: 92 Degrees


Read the online manual



To add the second camera below for caravan, truck or trailer





or or
                  CMOS                                                                              CCD                                                    no drilling required license plate camera



Features

Waterproof without extra Housing
Night vision available, It's a Color Camera in the day and will become a B/W camera at night
Outer Setting for Normal or Mirroring Video Output Mode
12vDV
Auto Iris
Audio/Video Connection via RCA
Infra Red for night vision
Mirror function

                                        CMOS CAMERA                                                                          CCD CAMERA

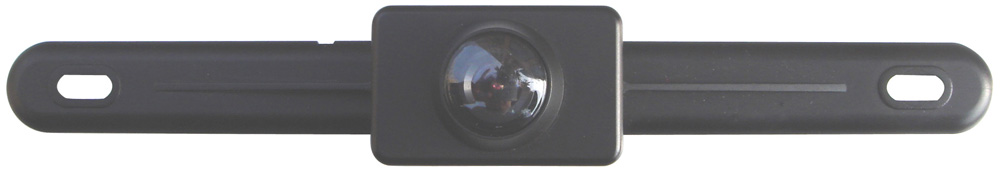

Model Reversing Camera adjustable direction, attach to number plate = no drilling!



Features:

Image sensor: OV 1/3-inch color CMOS
Total pixels: 628 x 582
Resolution: 420 TV lines
Mini illumination: 2.0 Lux
Lens: 6mm
TV system: PAL/NTSC
Video output: 1.0Vpp composite video at 75 ohms
Operation temperature: -20 - 50 deg. C
Power supply: DC 12V > = 200mA
Dimensions: 260mm x 32mm
Natural viewing angle of 92 degrees
Adjustable bracket up or down for better view angle





CCD – Charge Coupled Device: one of the two main types of image sensors used in digital cameras. When a picture is taken, the CCD is struck by light coming through the camera's lens. Each of the thousands or millions of tiny pixels that make up the CCD convert this light into electrons. The number of electrons, usually described as the pixel's accumulated charge, is measured, then converted to a digital value. This last step occurs outside the CCD, in a camera component called an analog-to-digital converter.

            CMOS – Complementary Metal-Oxide Semiconductor: one of the two main types of image sensors used in digital cameras. Its basic function is the same as that of a CCD. CMOS sensors are currently found in only a handful of digital cameras.



If using the second cameras as reversing camera then the CMOS camera is more than sufficient.  If you intend on using the second camera as a rear view mirror (and always being left on whilst towing) I suggest getting the CCD version as the image is sharper and will make driving easier, however the CMOS camera can adequately do this function

OPTIONS

$ 300 Monitor with CMOS bullet camera
$ 320 Monitor with CMOS license plate camera
$ 360 Monitor with CCD bullet camera
$ 320 Monitor with CMOS square camera
$ 380 Monitor with CCD square camera
$ 330 Monitor with CMOS square camera + 5 m + 10m cable
$ 390 Monitor with CMOS license plate camera + CMOS square camera + 2x5m + 10m
$ 390 Monitor with CCD square camera + 5m + 10m cable
$ 395 Monitor with CMOS Bullet + CMOS Square camera + 2x5m + 10m
$ 410 Monitor with CMOS square camera + CMOS square camera+ 5 m + 10m cable
$ 450 Monitor with CMOS Bullet + CCD Square camera + 2x5m + 10m
$ 465 Monitor with CMOS license plate camera + CCD Square camera
$ 520 Monitor with CCD Bullet + CCD Square camera + 2x5m + 10 m
$ 530 Monitor with CCD Square + CCD Square camera + 2x5m + 10m
